Helios Series

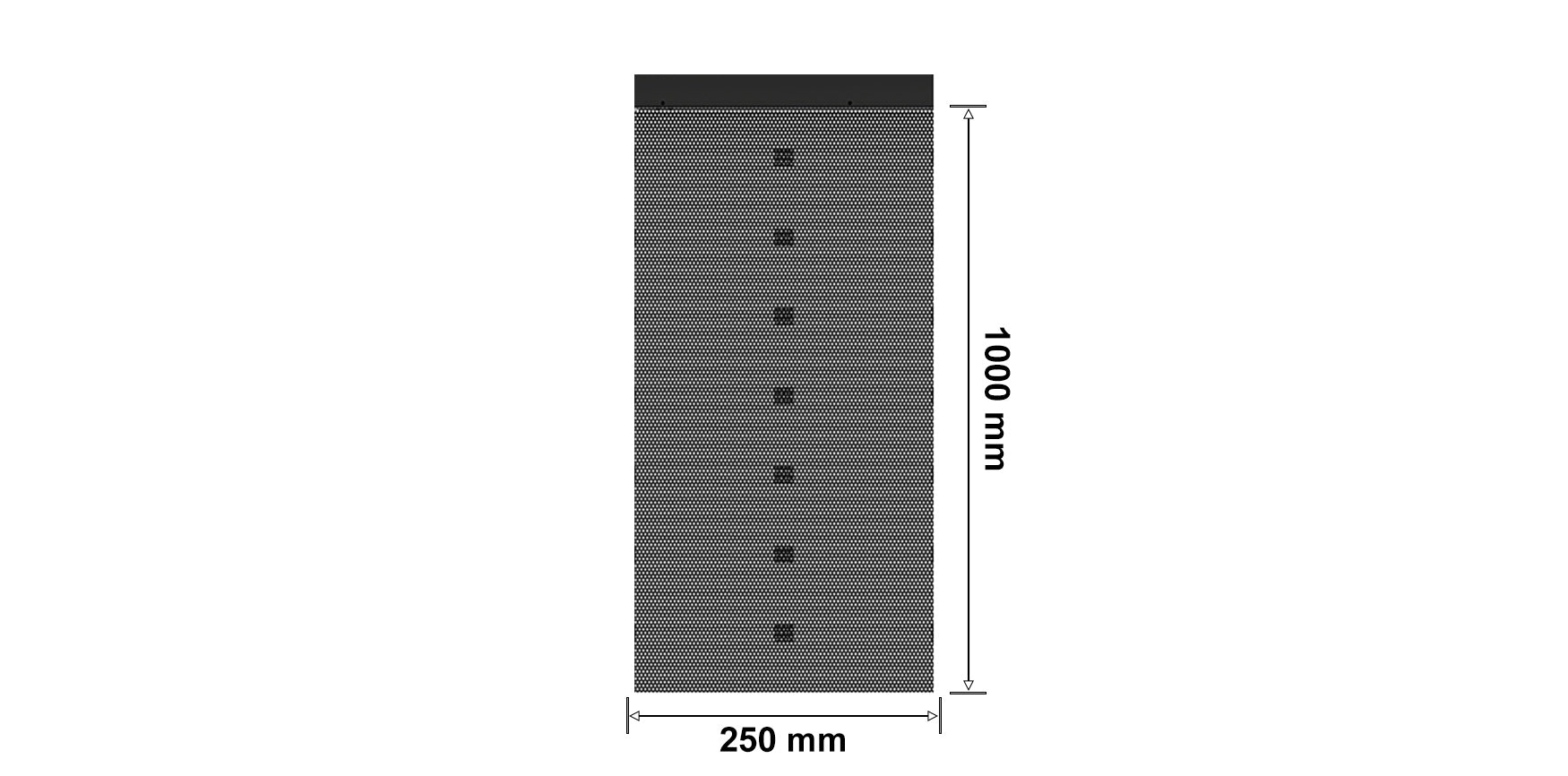

Product Dimensions

Module Size: 1000×250mm | Pitch: P3.9 / P6.25 | Ideal For: Retail storefronts, window displays, and premium showrooms.
Key Features

Frameless Holographic Transparency
- Frameless Structure
Precision PCB drilling with a frameless dragon bone design ensures an ultra-clean, seamless visual canvas. - >70% Physical Transparency
Maintains complete natural light and an open indoor ambiance with zero impact on daily storefront lighting. - 99% Visual Transparency
Delivers stunning, ultra-clear holographic visuals that appear to float completely in mid-air.

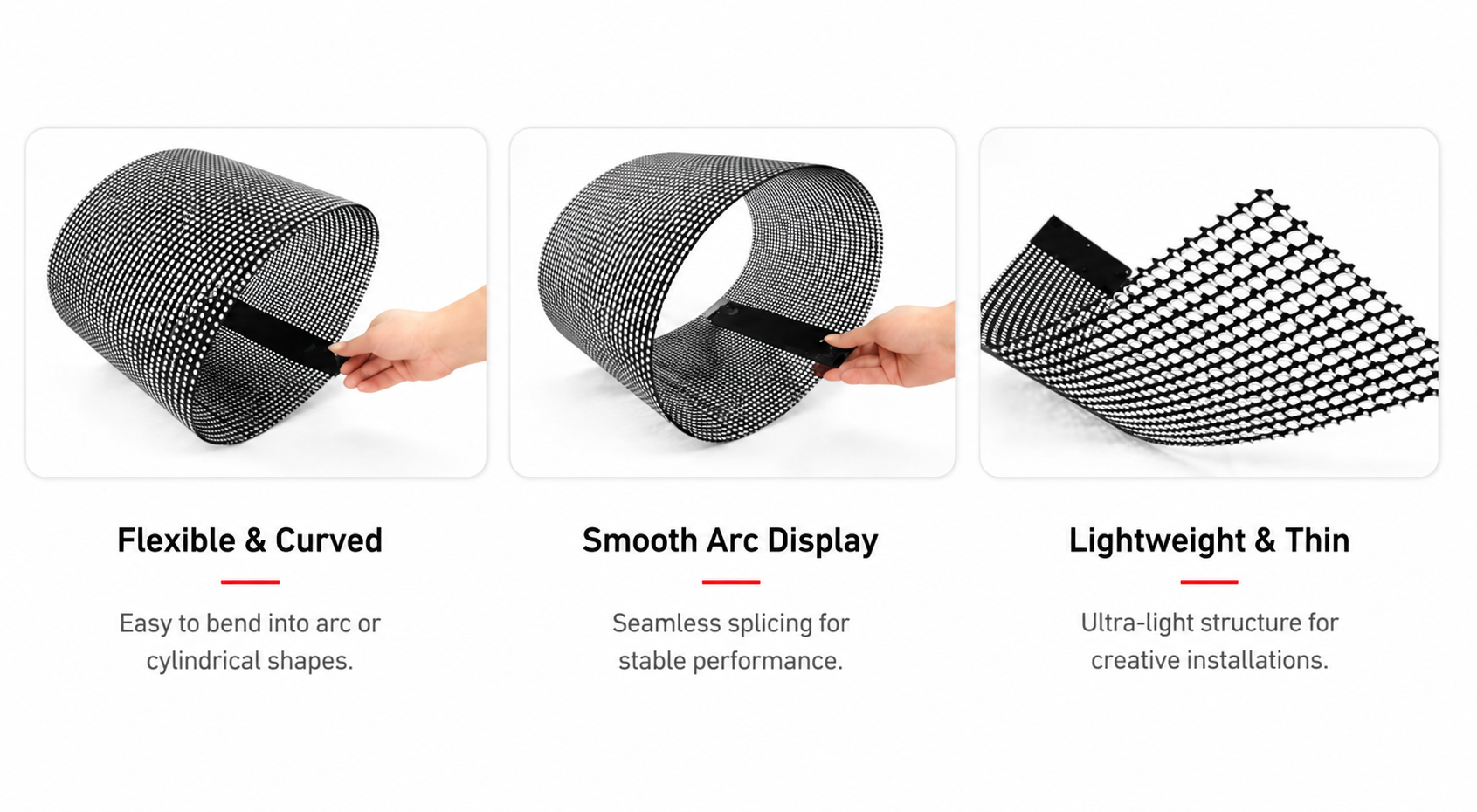

Flexible Curve Design
- R>600mm Smooth Curves
Easily bends into seamless arcs, cylinders, or custom outer-arcs. - Lightweight & Stable
Ultra-thin structure ensures seamless splicing and stable performance.

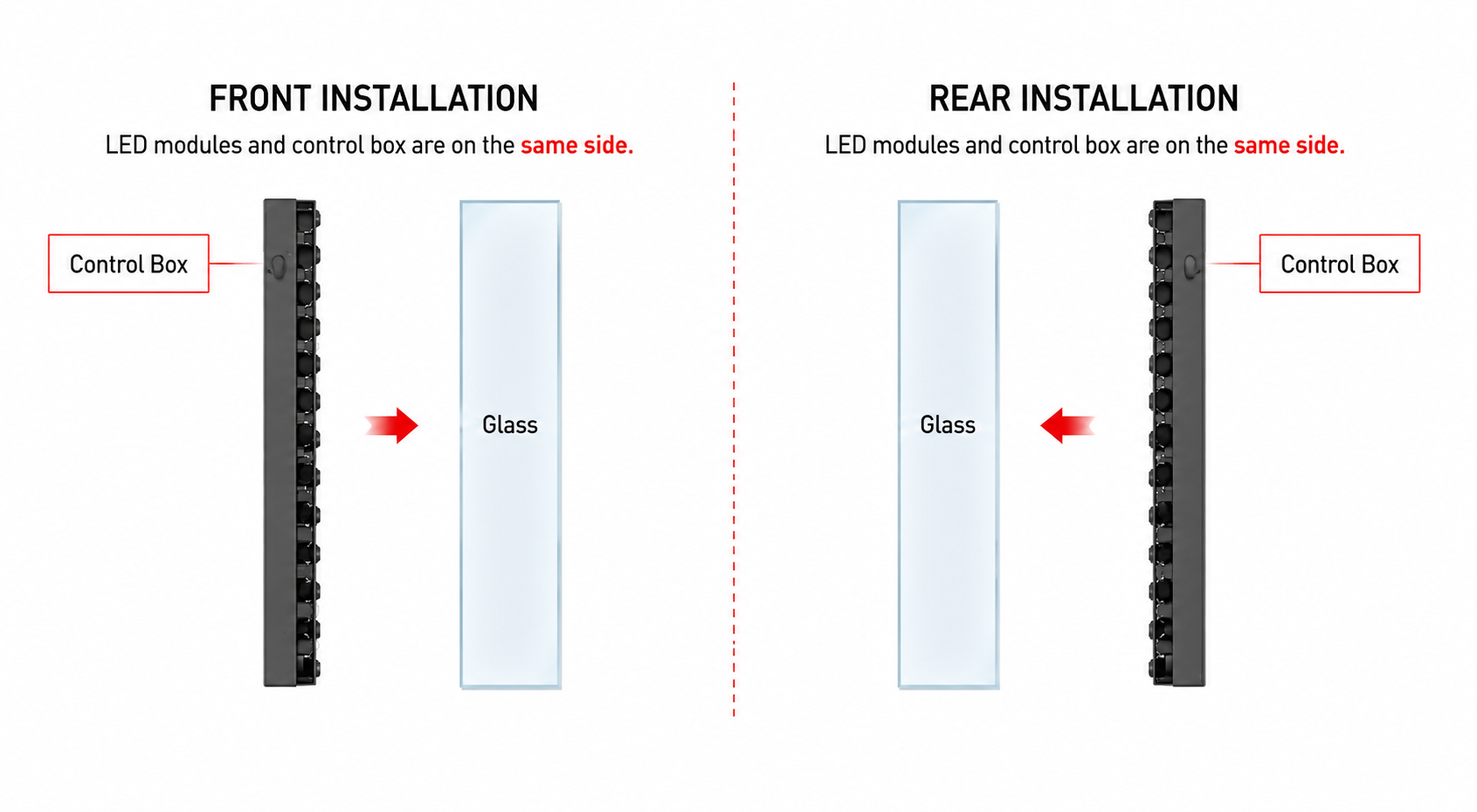

Dual Front/Rear Setup Fits any space instantly.
- Dual Front/Rear Setup Flexible, tool-free installation from either side to fit any space.
- ⚠️ Note: Modules and control box must remain on the same side.

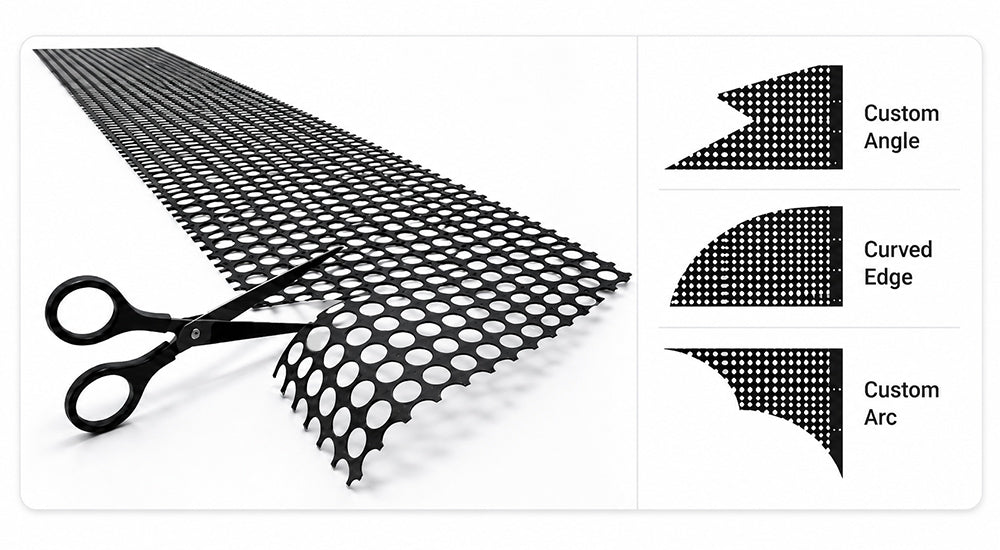

Customizable Cutting
- Easy On-Site Cutting
Built-in IC design allows precise, clean cutting on-site to fit any specific project dimension. - Custom & Flexible Shapes
Supports seamless customization into creative angles, curves, arcs, and diverse architectural shapes. - Tailored Application
Flexible design tailored to your exact creative staging needs for highly imaginative installations.

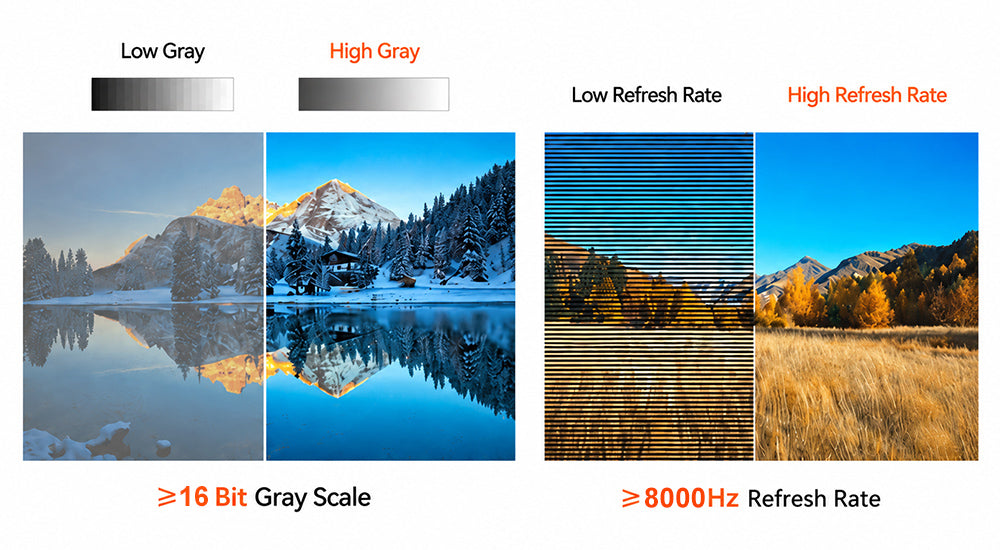

High Gray, High Refresh
- Fine Color Processing: Richer tones and more natural details.
- High Refresh Rate: Zero ghosting, zero flicker.
- Crystal Clear Visuals: Stable performance in any environment.

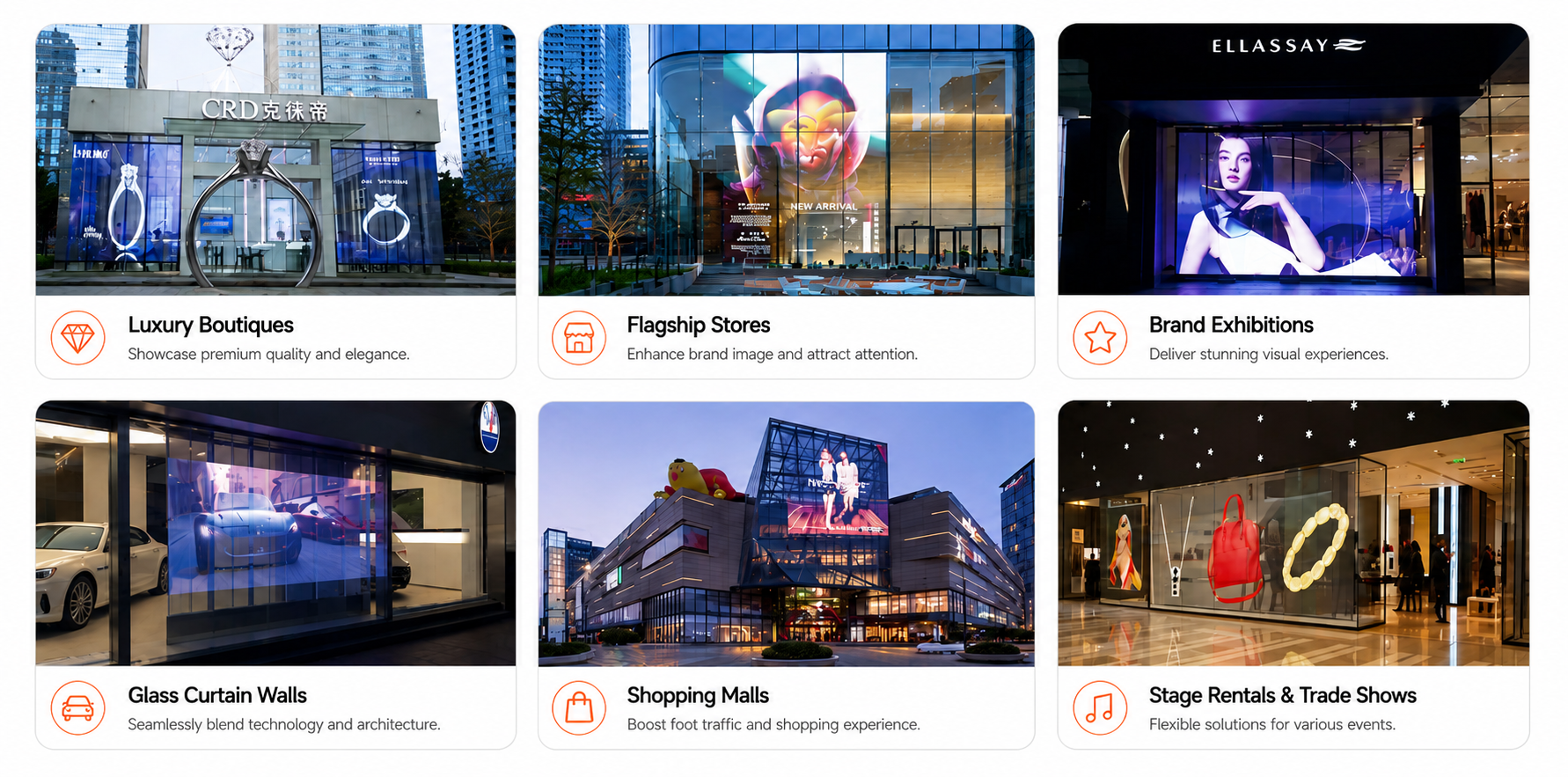

Applications Scenarios

Product Specification
| Model | Application | Pixel Pitch (mm) | LED Package | Surface Treatment / Product Type | Cabinet Size (mm) | Cabinet Resolution (px) | Weight | Brightness (nits) | Grayscale (bit) | Contrast Ratio | Refresh Rate (Hz) | Viewing Angle (H/V) / Transparency | IP Rating (Front / Rear) | Power Consumption (Max / Avg, W/m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HL-251Pro | Indoor | P2.5 | SMD515 | Holographic LED display | — | 400 × 100 | 6.5 kg / ㎡ | 4000 | 16 | 3000:1 | 8000 | 65% | IP20 / IP21 | 1200 / 450 |
| HL-291Pro | Indoor | P2.9 | SMD515 | Holographic LED display | — | 336 × 84 | 6.5 kg / ㎡ | 4000 | 16 | 2500:1 | 8000 | 70% | IP20 / IP21 | 1200 / 450 |
| HL-391Pro | Indoor | P3.9 | SMD2222 | Holographic LED display | — | 256 × 64 | 6 kg / ㎡ | 4000 | 16 | 2000:1 | 8000 | 80% | IP20 / IP21 | 1200 / 450 |
| HL-621Pro | Indoor | P6.25 | SMD2222 | Holographic LED display | — | 160 × 40 | 5 kg / ㎡ | 3500 | 16 | 2000:1 | 8000 | 85% | IP20 / IP21 | 1200 / 450 |
