Luna Series
Luminous Vision, Fearless in All Weather. Outdoor Fixed LED Display
The Luna series is an outdoor fixed installation LED display product. It features a high-strength, lightweight aluminum alloy construction, offering advantages such as being thin, durable, high-brightness and providing high protection (IP66). It is easy to install and maintain, energy-efficient and perfectly suited for outdoor display applications in media, roadside advertising, commercial displays and community promotions.
Key Features

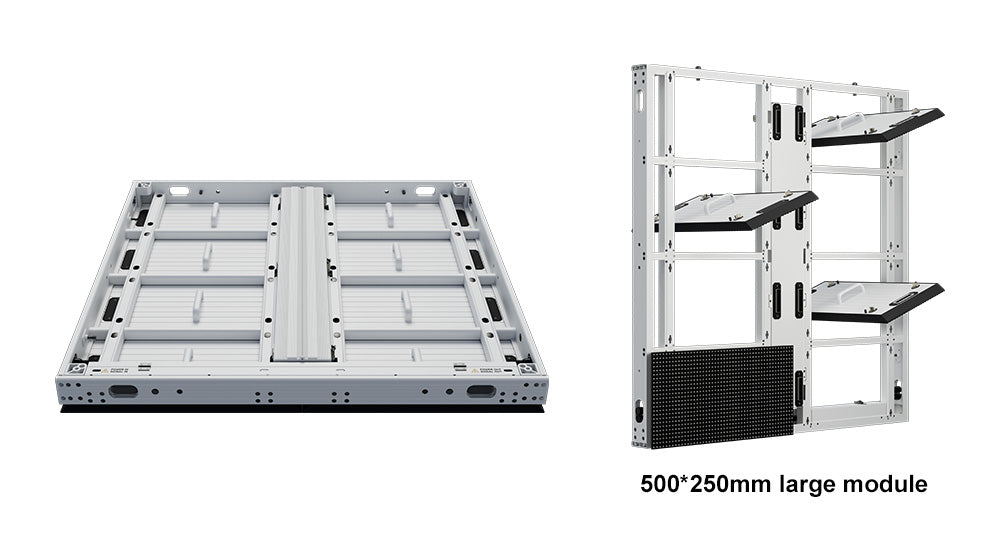

Fully Enclosed Module Design
Features a complete front maintenance and fully sealed module design, significantly enhancing waterproof performance for individual modules. The 500×250mm large modular format delivers optimal cost-performance.

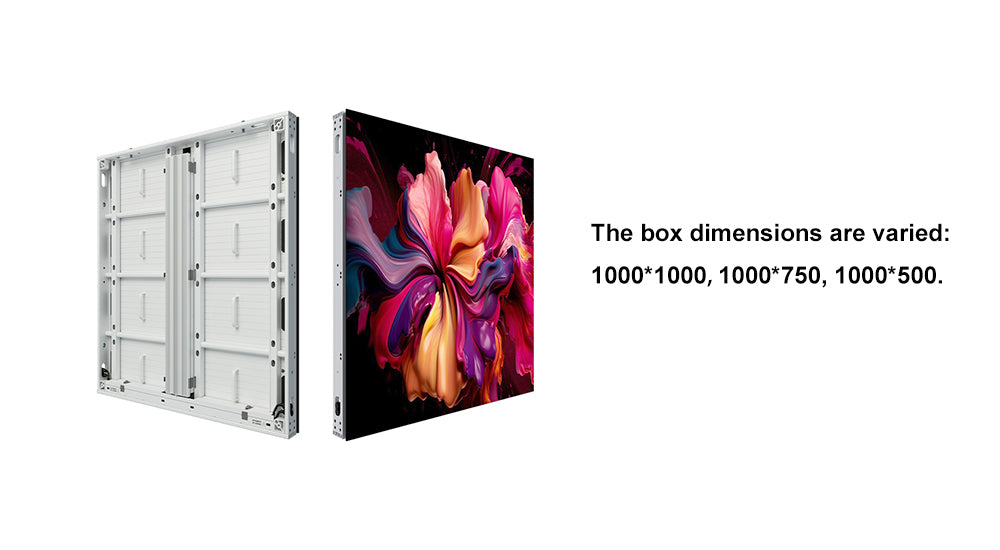

Extruded Aluminum Cabinet Structure

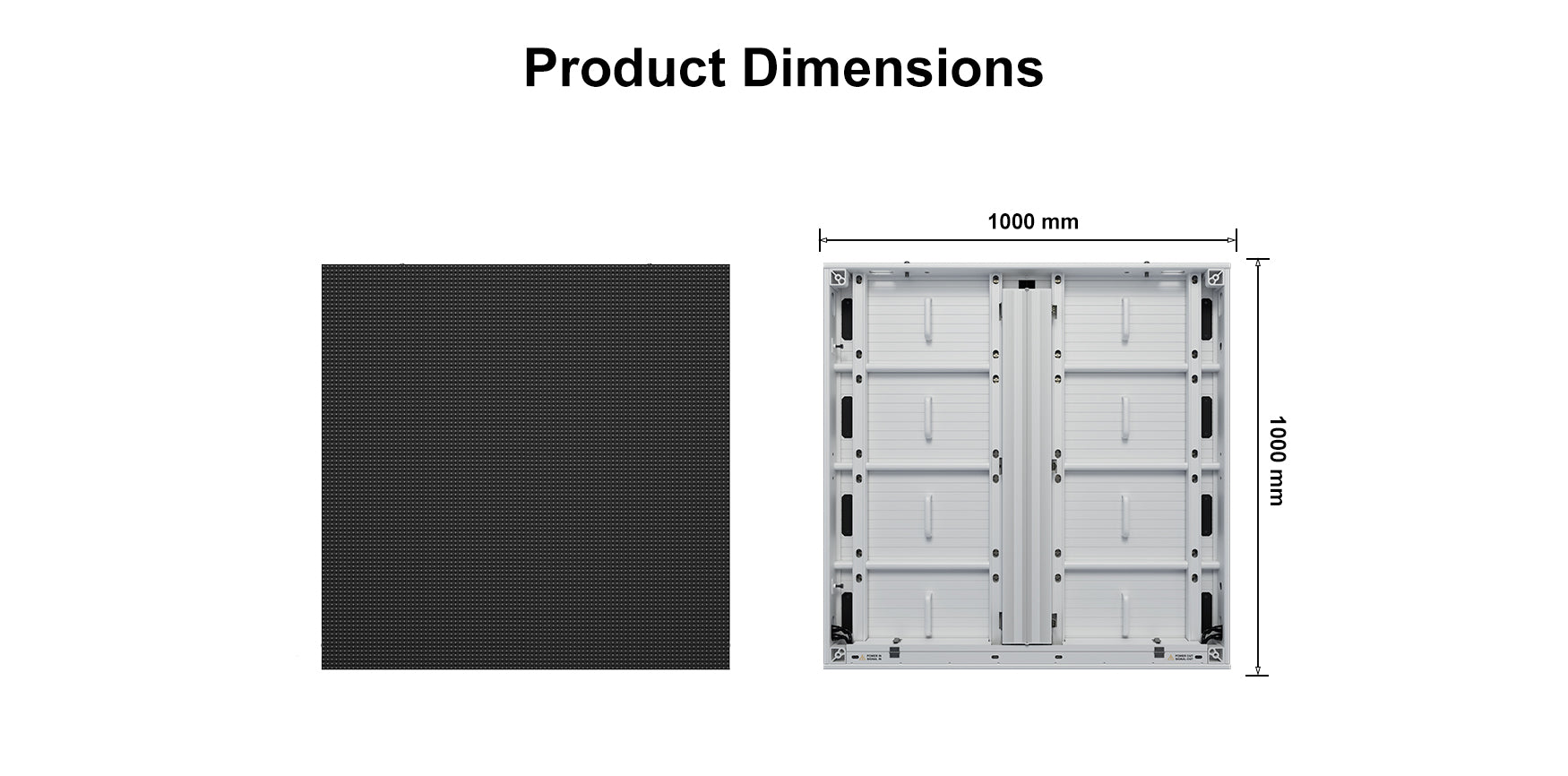

A sleek and modern profile cabinet structure that breaks away from traditional sheet metal designs. Custom sizes available (1000×1000, 1000×750, 1000×500) to meet the standard outdoor commercial display dimensions.

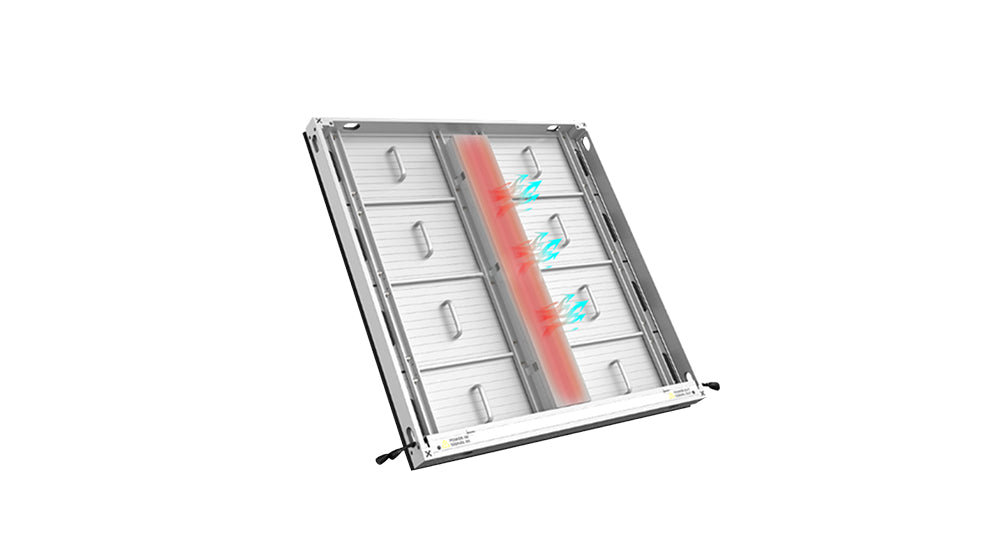

Efficient Silent Heat Dissipation
Offers better heat dissipation than traditional metal cabinets. The fan-less design enables thermal conduction cooling for silent, noise-free operation.
Concealed Cable Design
The cabinet features a built-in cable channel at the bottom, creating a clean and tidy screen connection for enhanced visual appeal.
Wider Application Scenarios
Supports outdoor fine pixel pitches like 2.9mm for close-viewing scenarios, expanding its use beyond traditional long-distance outdoor displays.

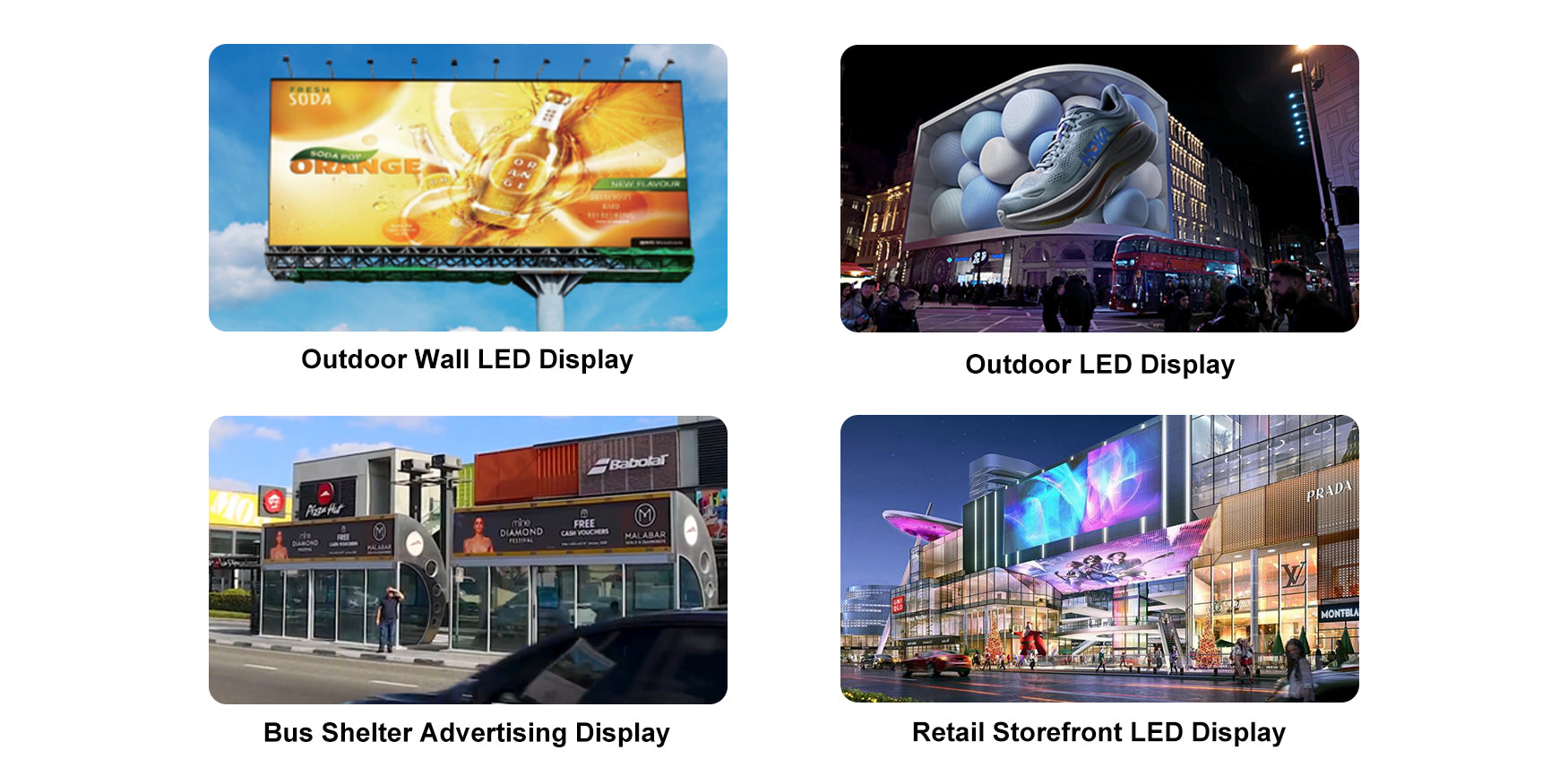

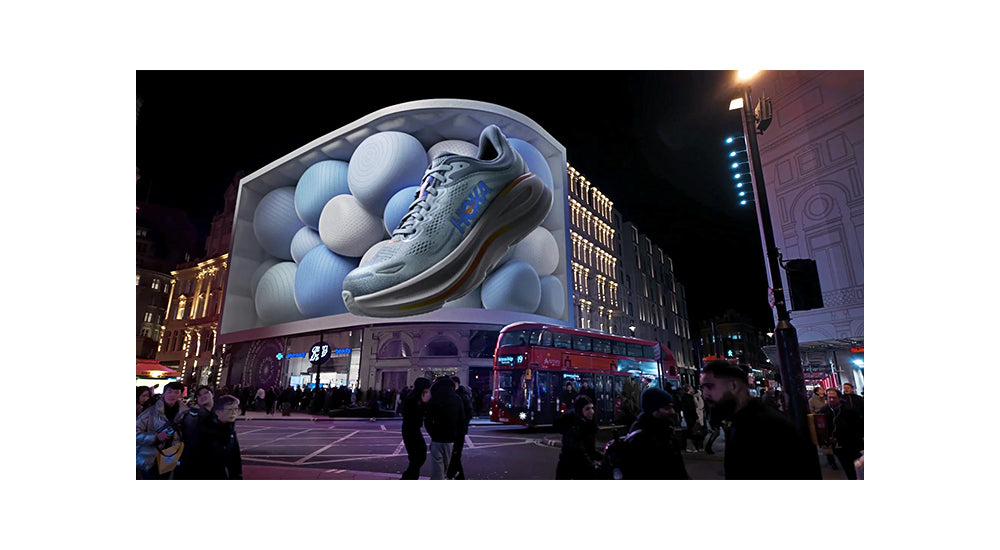

Applications Scenarios

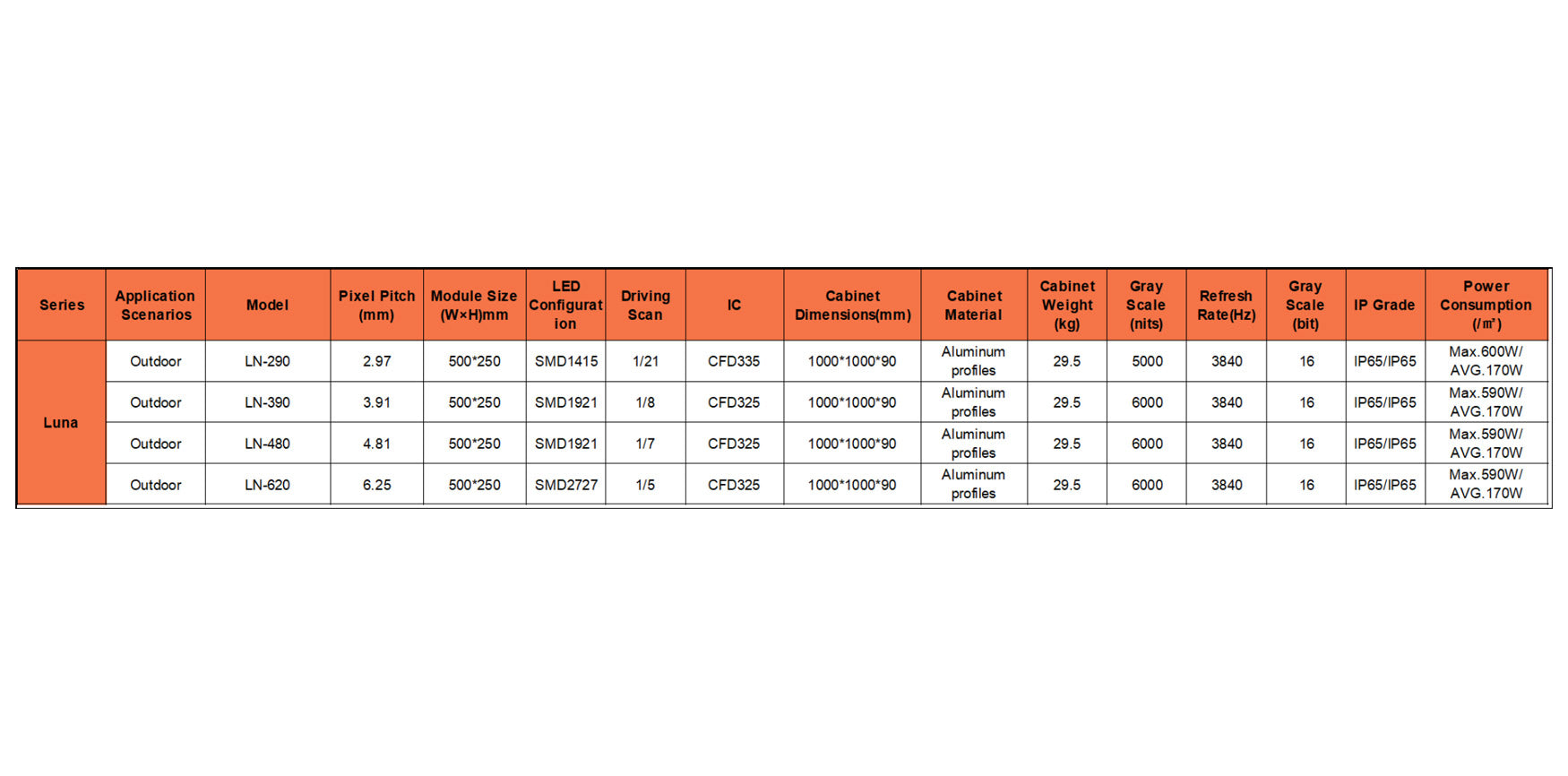

Product Specification
| Series | Application | Model | Pixel Pitch | Module Size (WxH) | LED Configuration | Driving Scan | IC | Cabinet Dimensions | Cabinet Material | Cabinet Weight | Brightness | Refresh Rate | Gray Scale | IP Grade | Power (Max/Avg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Luna | Outdoor | LN-290 | 2.97 mm | 500×250 mm | SMD1415 | 1/21 | CFD335 | 1000×1000×90 mm | Aluminum profiles | 29.5 kg | 5000 nits | 3840 Hz | 16 bit | IP65/IP65 | 600W/170W/m² |
| Outdoor | LN-390 | 3.91 mm | 500×250 mm | SMD1921 | 1/8 | CFD325 | 1000×1000×90 mm | Aluminum profiles | 29.5 kg | 6000 nits | 3840 Hz | 16 bit | IP65/IP65 | 590W/170W/m² | |
| Outdoor | LN-480 | 4.81 mm | 500×250 mm | SMD1921 | 1/7 | CFD325 | 1000×1000×90 mm | Aluminum profiles | 29.5 kg | 6000 nits | 3840 Hz | 16 bit | IP65/IP65 | 590W/170W/m² | |
| Outdoor | LN-620 | 6.25 mm | 500×250 mm | SMD2727 | 1/5 | CFD325 | 1000×1000×90 mm | Aluminum profiles | 29.5 kg | 6000 nits | 3840 Hz | 16 bit | IP65/IP65 | 590W/170W/m² |
