Mercury Series
Lively and transparent
Key Features

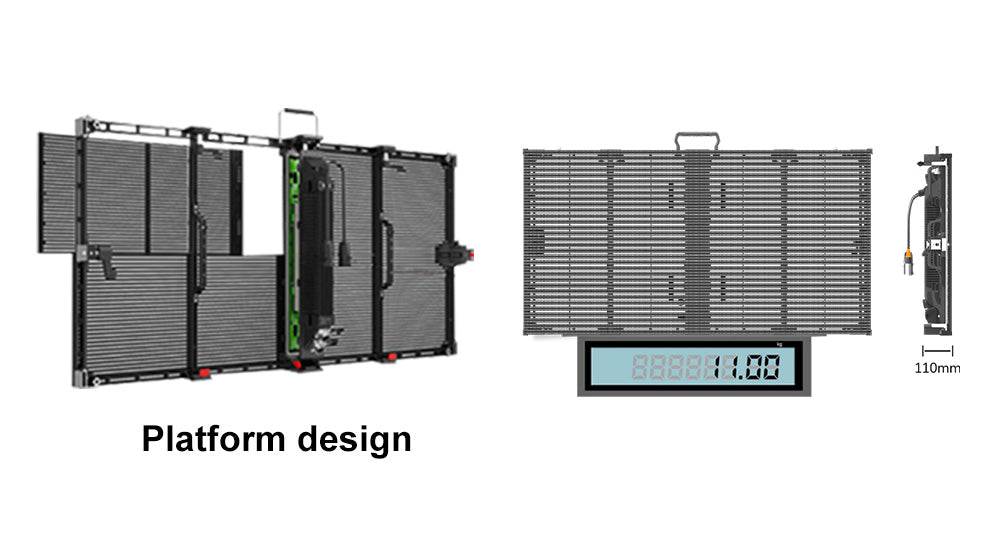

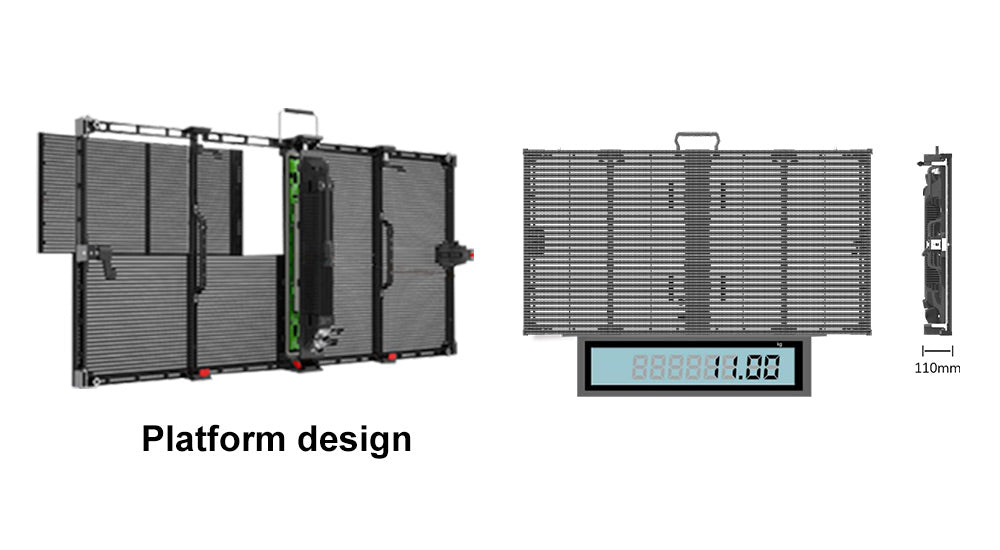

Modular Platform Design & Slim Portability

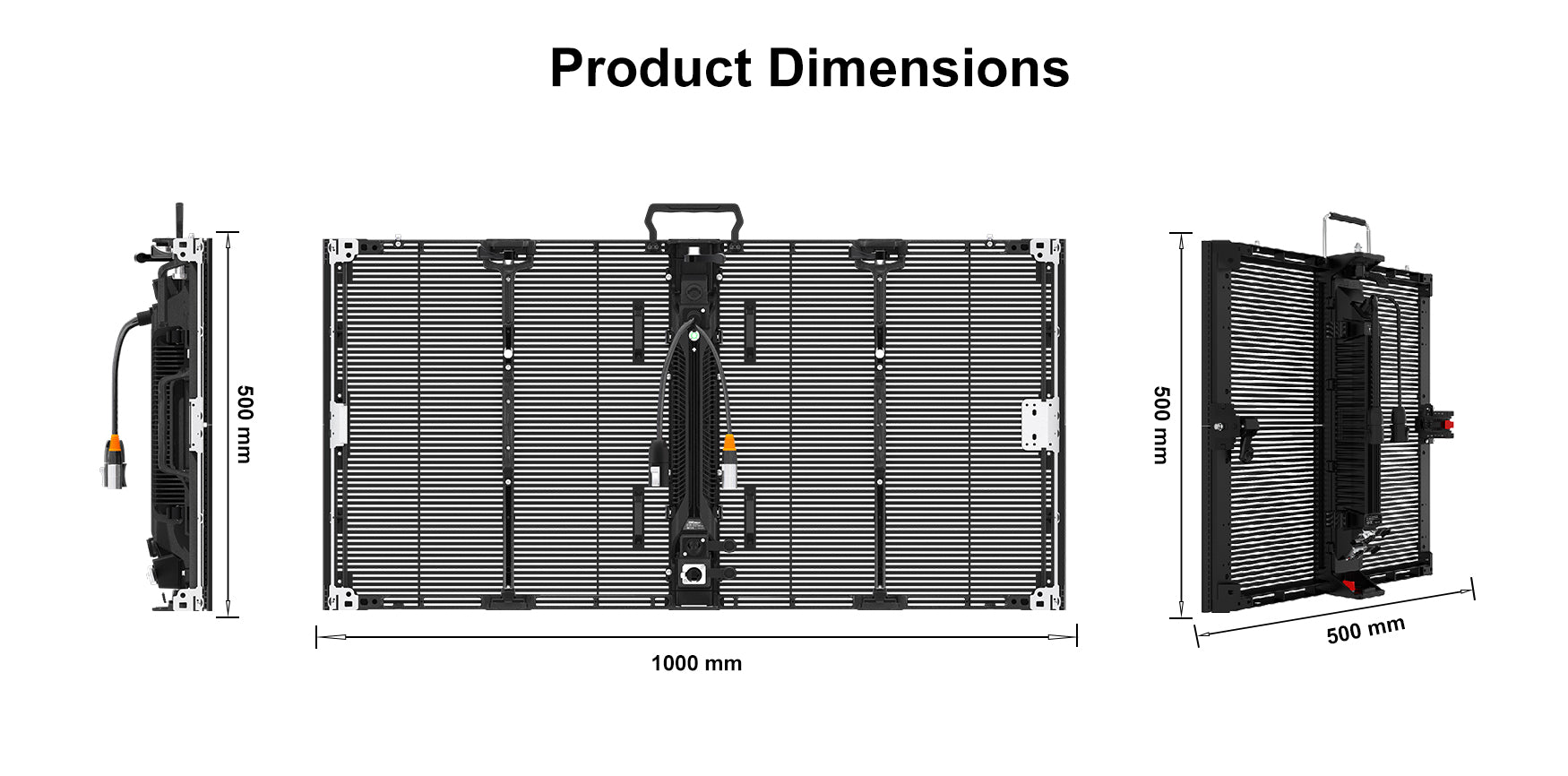

Designed with a platform-based concept, allowing module kits and power boxes to be shared across different cabinet sizes and pixel pitches—streamlining accessory management. Each cabinet weighs only 11kg or 5.5kg, with a slim profile of 110mm for easy transport and efficient installation.

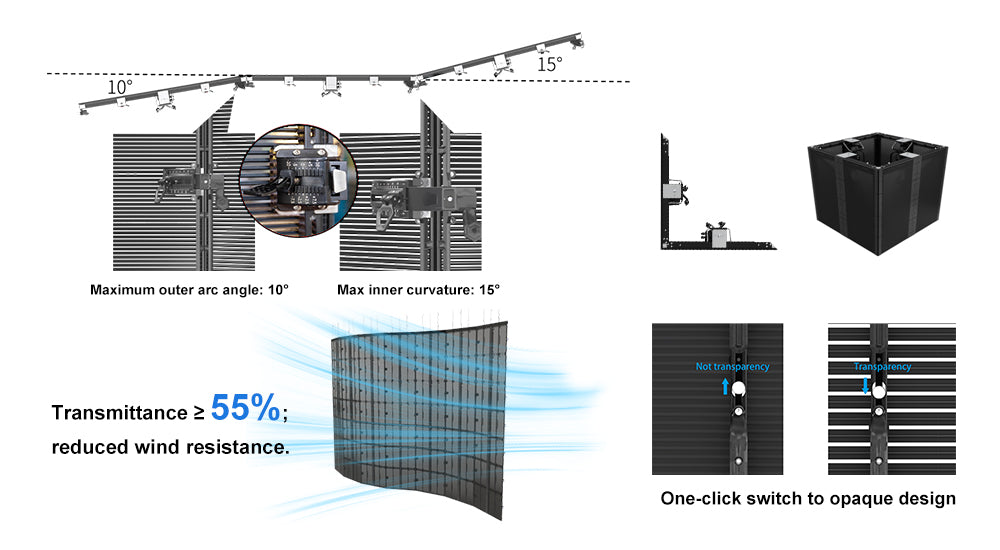

Flexible Configurations & High Transparency
Supports creative splicing including curves, mixed-size cabinets, and 90° corner cuts. Offers high wind resistance with ≥55% transparency. A one-click switch to a non-transparent mode enables seamless adaptation across different scenarios—blending space, light, and technology.

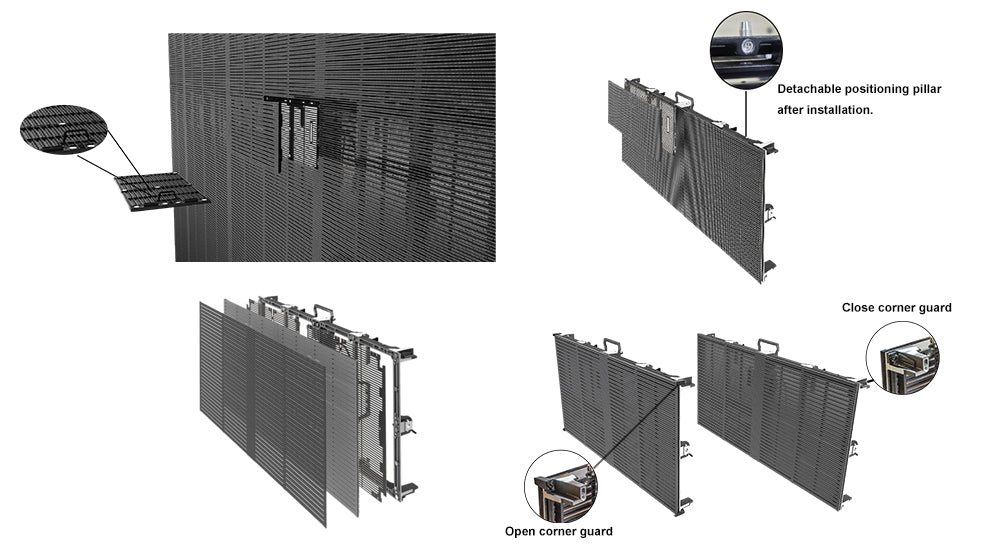

Reliable & Easy Maintenance
Exclusive circuit protection and advanced waterproofing enhance durability. Corner protection kits prevent damage during transport and placement. Quick-release front/rear locks for modules and power boxes, along with removable positioning posts, allow for offset maintenance—saving time and effort. The cabinet is engineered to withstand wind and pressure across varied environments with easy operation.

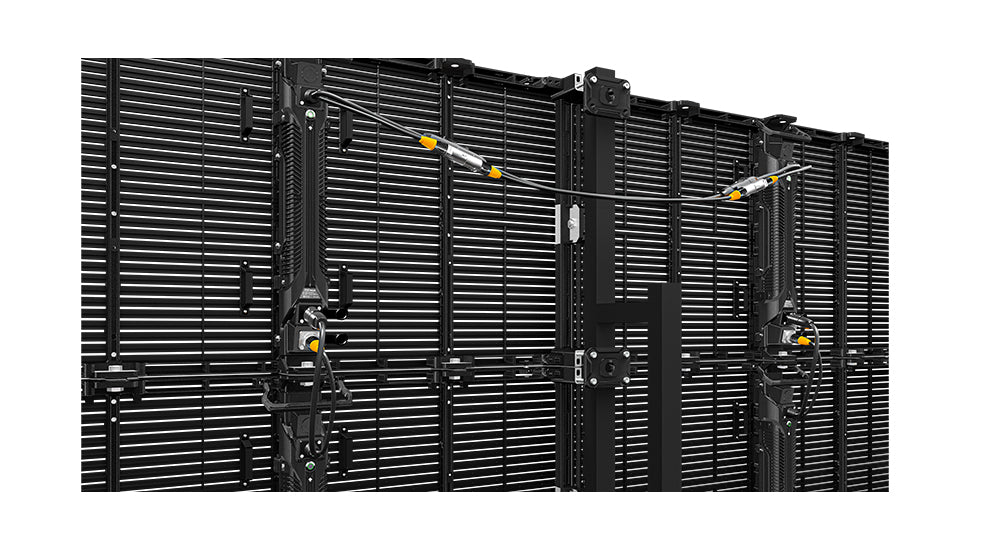

Fast Installation & Versatile Cabling
Pre-installed power and signal cables offer a plug-and-play solution with an integrated design for quick wiring and enhanced installation efficiency. Optional fixed or detachable cable extensions increase usage flexibility to fit diverse application scenarios.

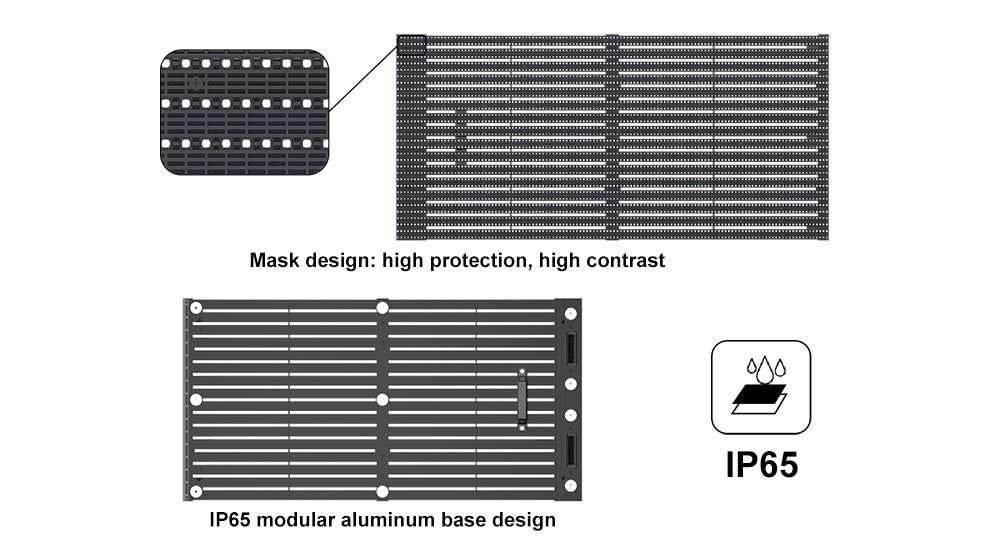

Optimized Module with Superior Protection
Equipped with piston-style interface design and IP65 waterproof rating for stable operation under harsh conditions. Aluminum back shell improves heat dissipation and corrosion resistance, ideal for high-temperature, high-humidity environments. Dual-row LED layout optimizes light output in IC zones, reduces color shifts (such as blue tint), and enhances impact resistance and flatness. In-house developed LED masks combine enhanced protection with uniform surface flatness, improving ink uniformity by 30% and offering a contrast ratio of 5000:1—delivering high-transparency visuals with outstanding environmental adaptability.

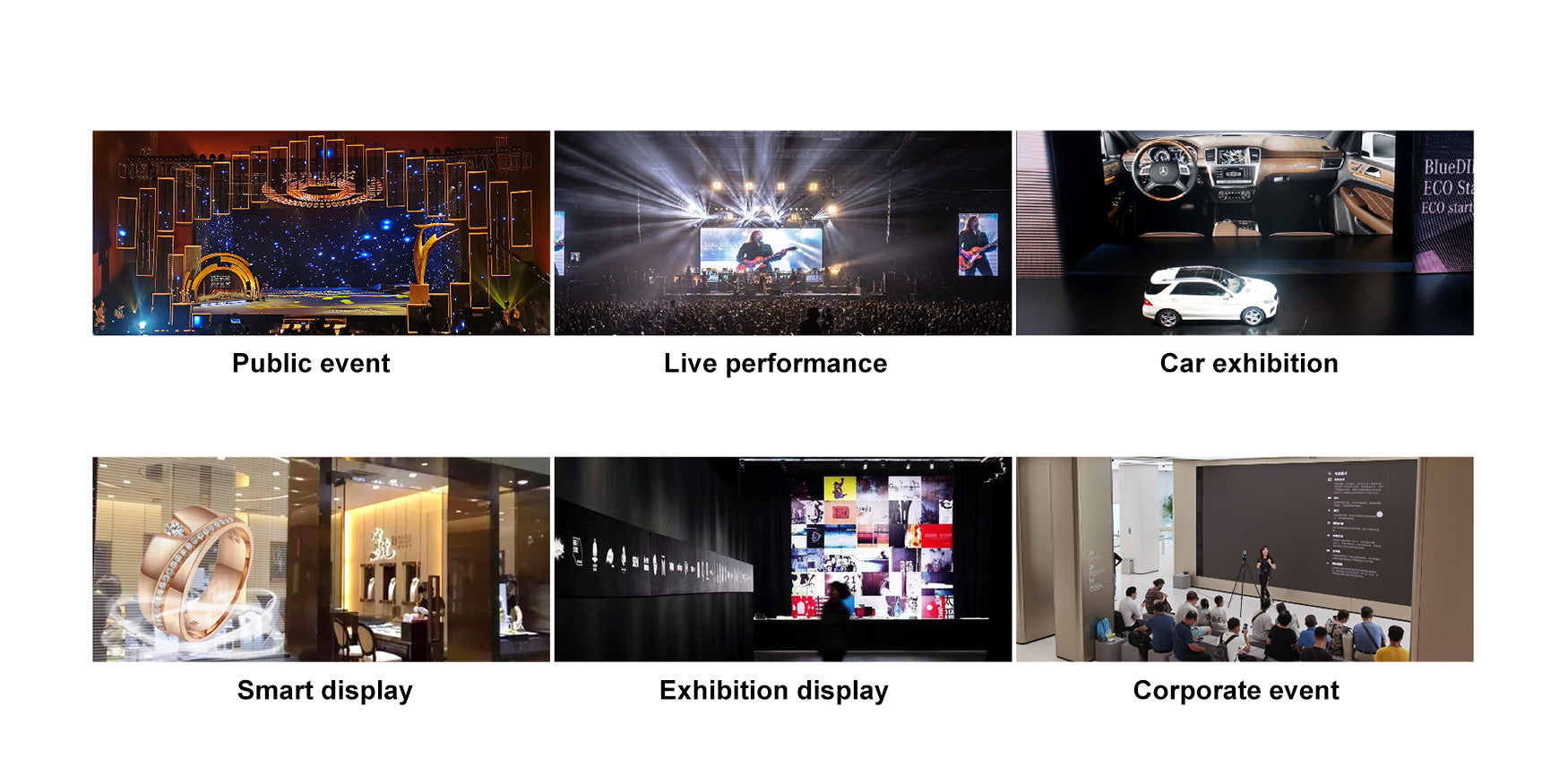

Application Scenarios

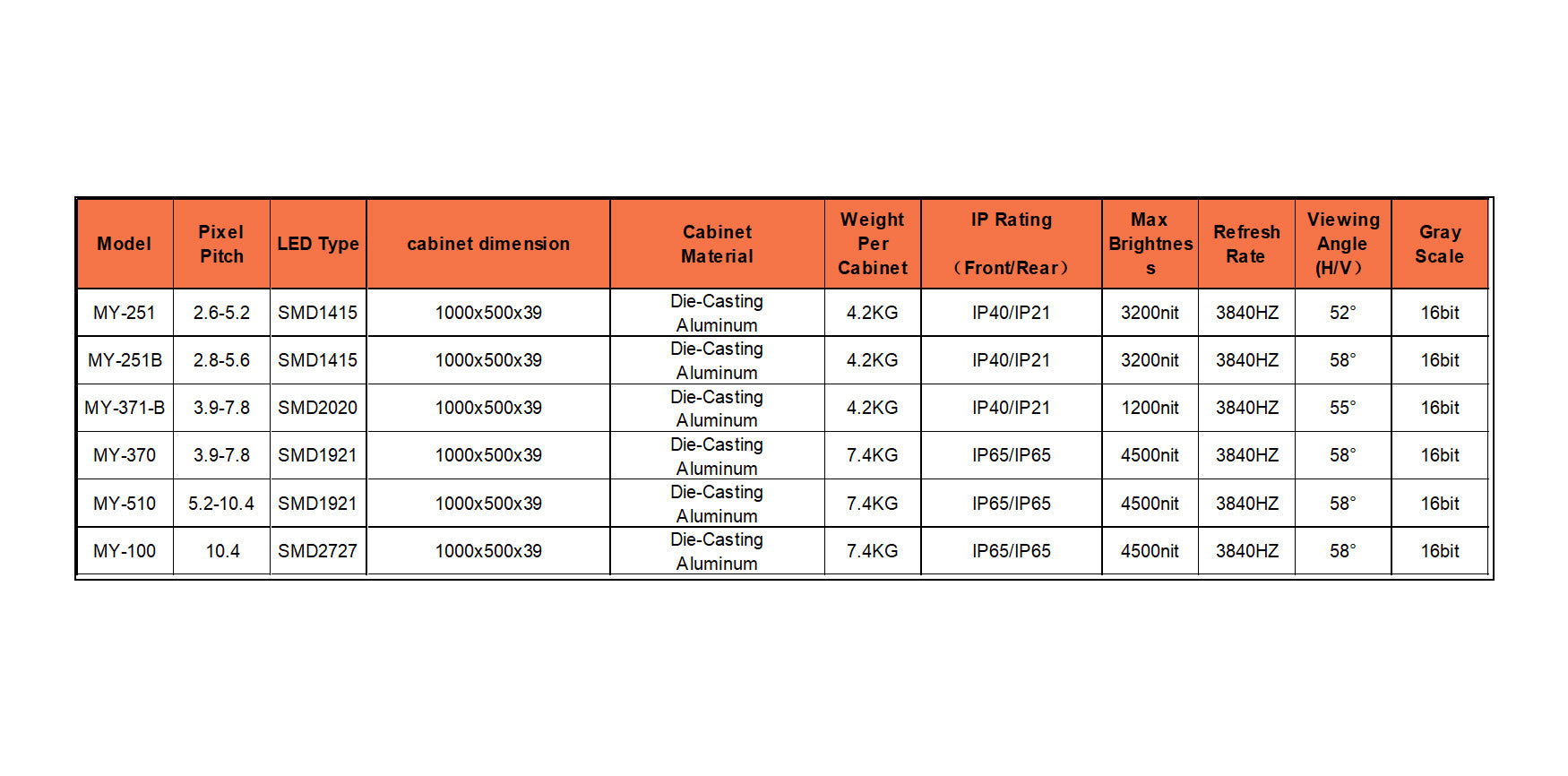

Product Specification
| Series | Model | Pixel Pitch (mm) | LED Type | Cabinet Dimension (mm) | Cabinet Material | Weight Per Cabinet | IP Rating (F/R) | Max Brightness | Refresh Rate | Viewing Angle (H/V) | Gray Scale |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MY | MY-251 | 2.6-5.2 | SMD1415 | 1000×500×39 | Die-Casting Aluminum | 4.2 kg | IP40/IP21 | 3200 nits | 3840 Hz | 52° | 16 bit |
| MY-251B | 2.8-5.6 | SMD1415 | 1000×500×39 | Die-Casting Aluminum | 4.2 kg | IP40/IP21 | 3200 nits | 3840 Hz | 58° | 16 bit | |
| MY-371-B | 3.9-7.8 | SMD2020 | 1000×500×39 | Die-Casting Aluminum | 4.2 kg | IP40/IP21 | 1200 nits | 3840 Hz | 55° | 16 bit | |
| MY-370 | 3.9-7.8 | SMD1921 | 1000×500×39 | Die-Casting Aluminum | 7.4 kg | IP65/IP65 | 4500 nits | 3840 Hz | 58° | 16 bit | |
| MY-510 | 5.2-10.4 | SMD1921 | 1000×500×39 | Die-Casting Aluminum | 7.4 kg | IP65/IP65 | 4500 nits | 3840 Hz | 58° | 16 bit | |
| MY-100 | 10.4 | SMD2727 | 1000×500×39 | Die-Casting Aluminum | 7.4 kg | IP65/IP65 | 4500 nits | 3840 Hz | 58° | 16 bit |
