Neptune Series
12,000 Nit High Brightness; Energy-Saving LED Display
Key Features

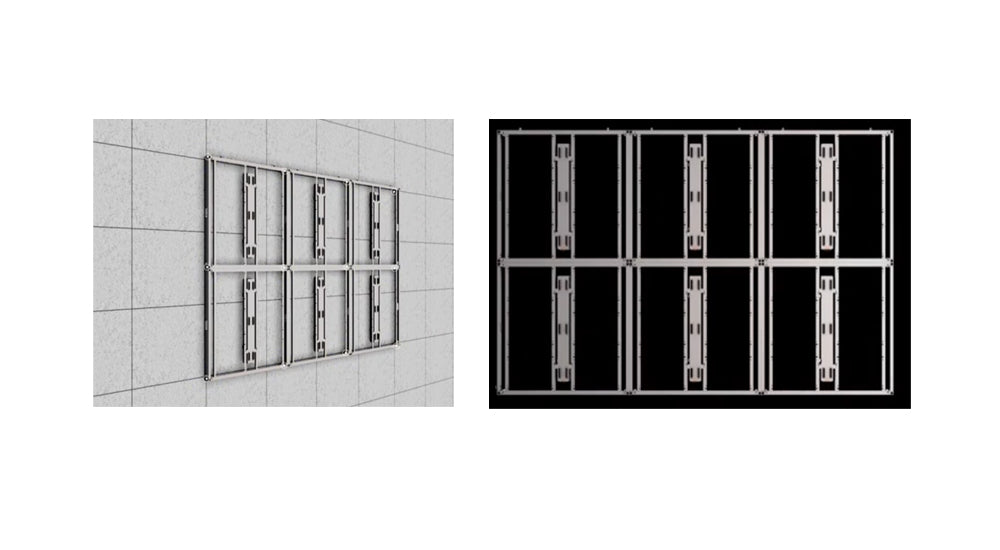

Versatile Installation, Flexible & Convenient
Supports multiple installation methods including ground stacking, hanging, and wall-mounted setups to meet various application needs.

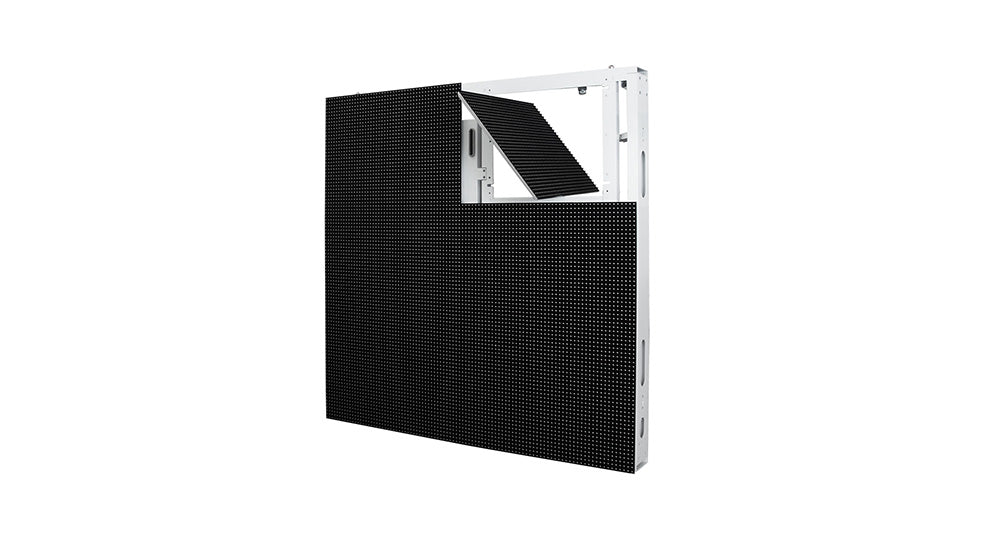

Modular Design, Efficient Maintenance
Modules, cabinets, and power boxes feature a modular design. Full front and rear maintenance supported. Hard connections allow complete front access—including module control boxes—for easy and fast disassembly and maintenance.

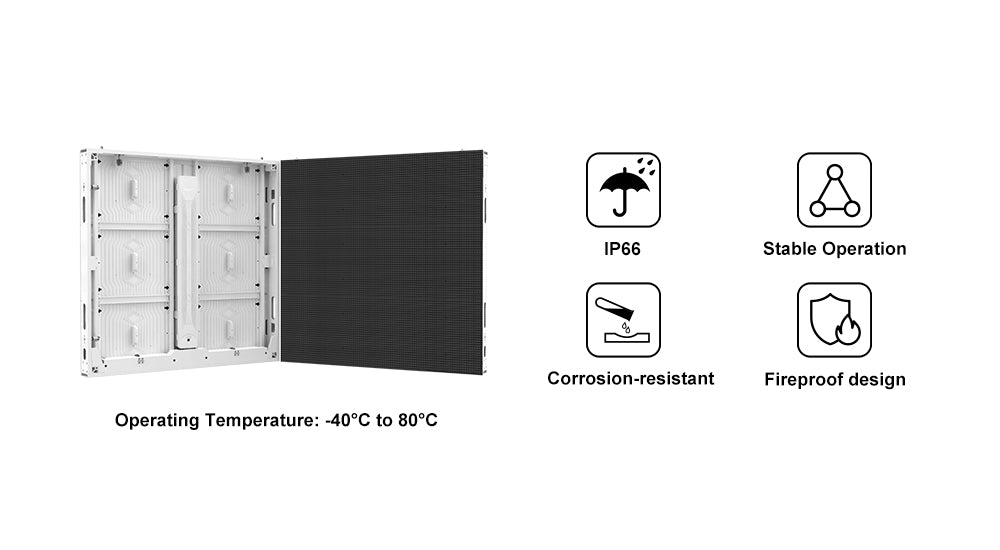

All-Weather Outdoor Use, Strong Environmental Adaptability
IP66 protection rating with die-cast aluminum cabinets that are corrosion-resistant, fire-retardant, moisture-proof, and salt-spray resistant. High flatness and capable of stable long-term operation in harsh environments such as coastal areas. Operating temperature: -40°C to 80°C.

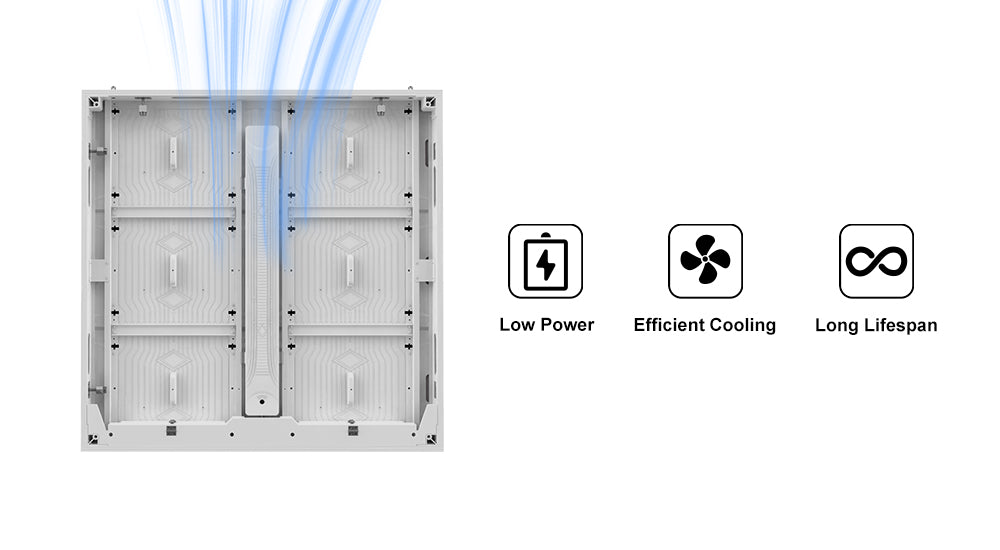

Efficient Heat Dissipation, Energy-Saving & Durable
Ultra-low temperature rise, low power consumption, and low attenuation. Aluminum modules provide excellent thermal conductivity for overall screen heat dissipation—no need for air conditioning. High reliability and long service life.

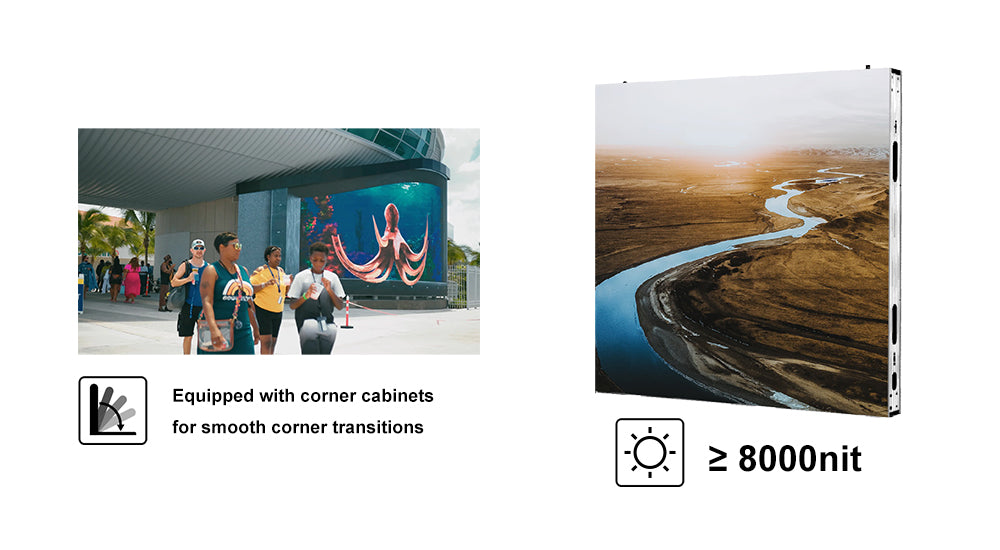

High Brightness & Naked-Eye 3D Support
Brightness ≥8000 nits to meet various outdoor application demands. Paired with corner cabinets to achieve smooth corner transitions, supporting outdoor naked-eye 3D display effects.

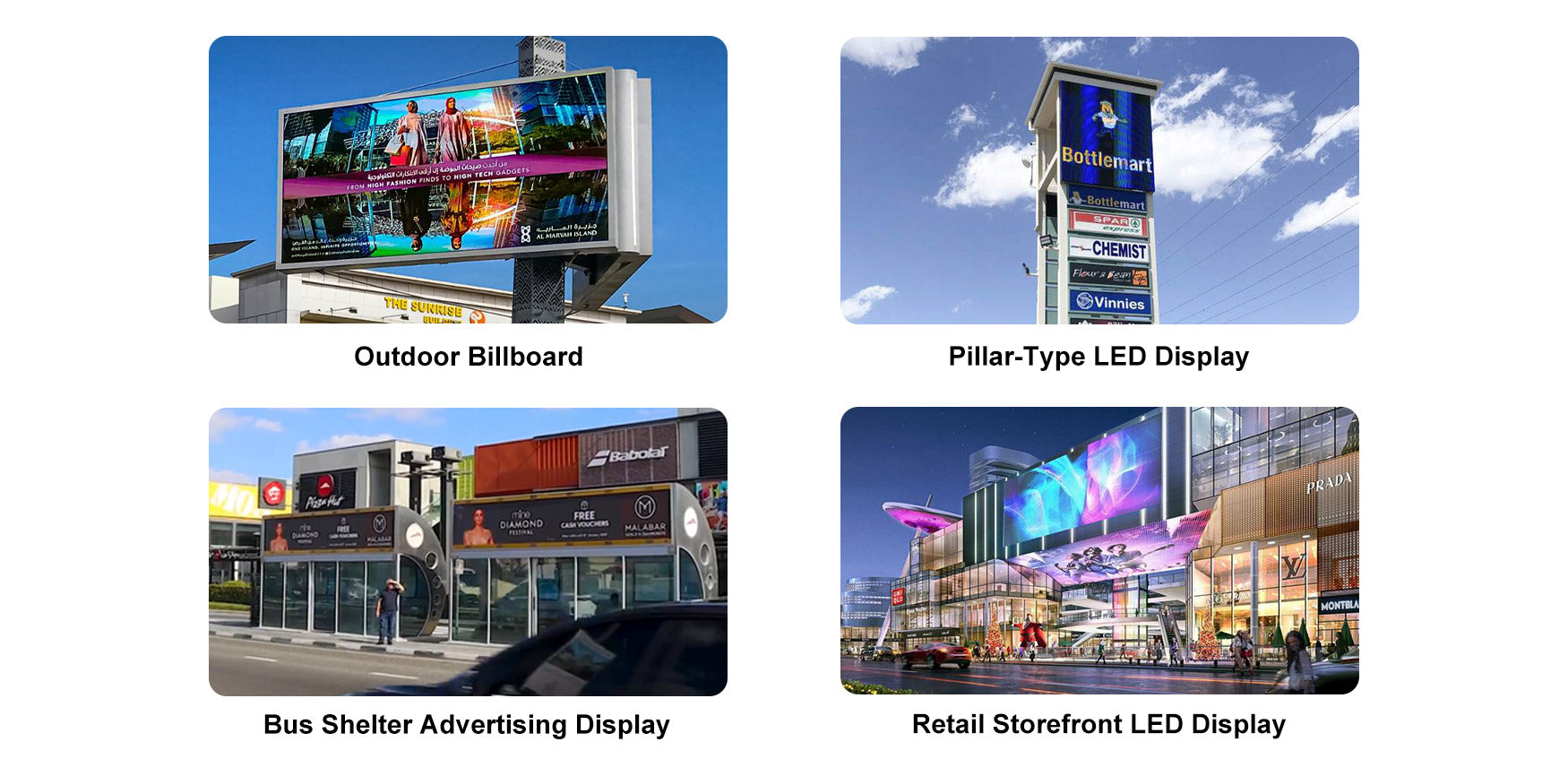

Application Scenarios

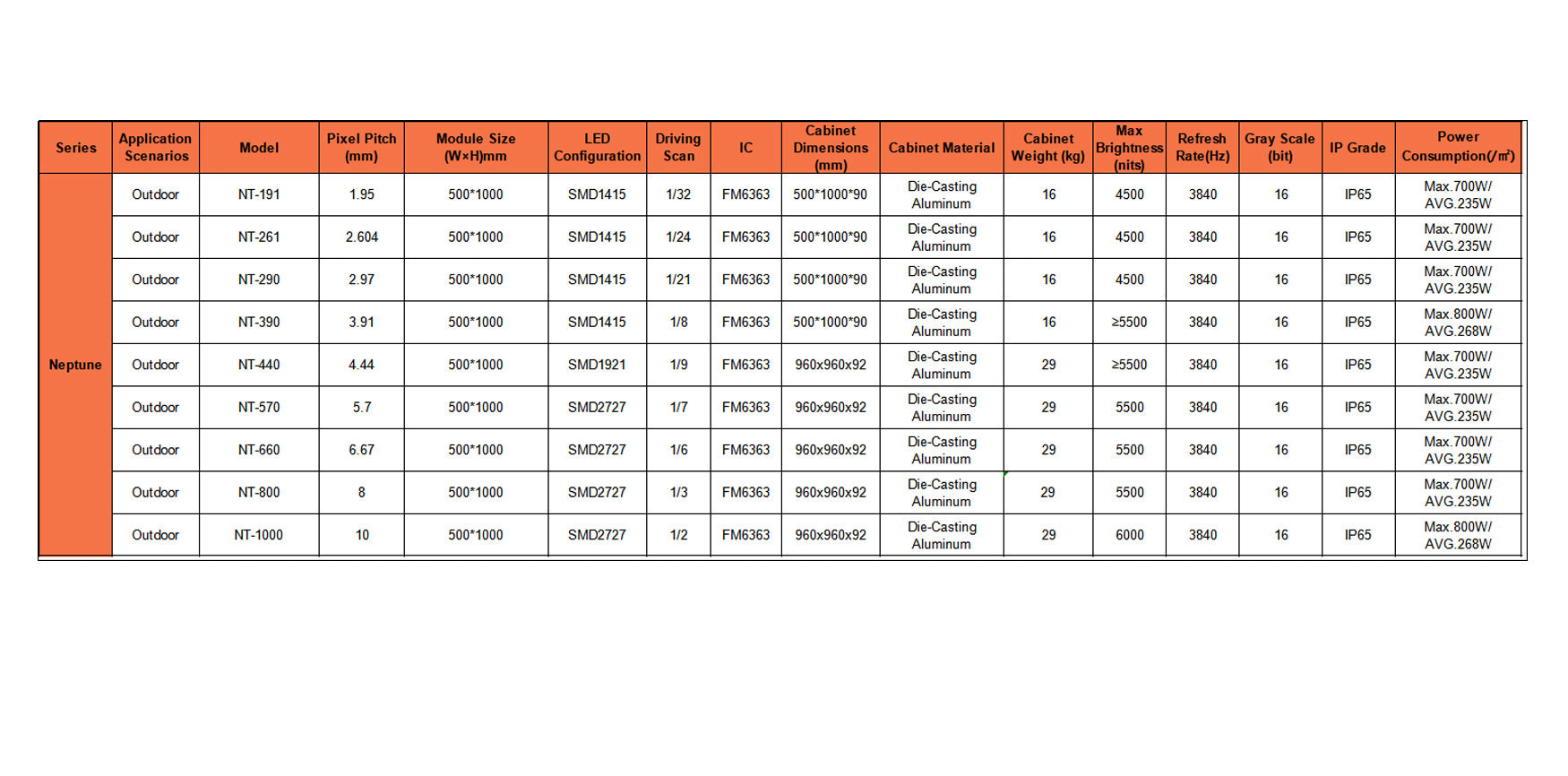

Product Specification
| Series | Application | Model | Pixel Pitch (mm) | Module Size (WxH) mm | LED Configuration | Driving Scan | IC | Cabinet Dimensions (mm) | Cabinet Material | Cabinet Weight (kg) | Max Brightness (nits) | Refresh Rate (Hz) | Gray Scale (bit) | IP Grade | Power Consumption (/m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Neptune | Outdoor | NT-191 | 1.95 | 500*1000 | SMD1415 | 1/32 | FM6363 | 500*1000*90 | Die-Casting Aluminum | 16 | 4500 | 3840 | 16 | IP65 | Max.700W / AVG.235W |
| NT-261 | 2.604 | 500*1000 | SMD1415 | 1/24 | FM6363 | 500*1000*90 | 16 | 4500 | 3840 | 16 | IP65 | Max.700W / AVG.235W | |||
| NT-290 | 2.97 | 500*1000 | SMD1415 | 1/21 | FM6363 | 500*1000*90 | 16 | 4500 | 3840 | 16 | IP65 | Max.700W / AVG.235W | |||
| NT-390 | 3.91 | 500*1000 | SMD1415 | 1/8 | FM6363 | 500*1000*90 | 16 | ≥5500 | 3840 | 16 | IP65 | Max.800W / AVG.268W | |||
| NT-440 | 4.44 | 500*1000 | SMD1921 | 1/9 | FM6363 | 960x960x92 | Die-Casting Aluminum | 29 | ≥5500 | 3840 | 16 | IP65 | Max.700W / AVG.235W | ||
| NT-570 | 5.7 | 500*1000 | SMD2727 | 1/7 | FM6363 | 960x960x92 | 29 | 5500 | 3840 | 16 | IP65 | Max.700W / AVG.235W | |||
| NT-660 | 6.67 | 500*1000 | SMD2727 | 1/6 | FM6363 | 960x960x92 | 29 | 5500 | 3840 | 16 | IP65 | Max.700W / AVG.235W | |||
| NT-800 | 8 | 500*1000 | SMD2727 | 1/3 | FM6363 | 960x960x92 | 29 | 5500 | 3840 | 16 | IP65 | Max.700W / AVG.235W | |||
| NT-1000 | 10 | 500*1000 | SMD2727 | 1/2 | FM6363 | 960x960x92 | 29 | 6000 | 3840 | 16 | IP65 | Max.800W / AVG.268W |
