Saturn Series
Saturn Series — Outdoor Fixed Installation LED Display
P5.7 · P6.6 · P8 · P10 | 6,000–12,000 nits | 7,680 Hz | IP65 | Die-cast Aluminum | 24 kg

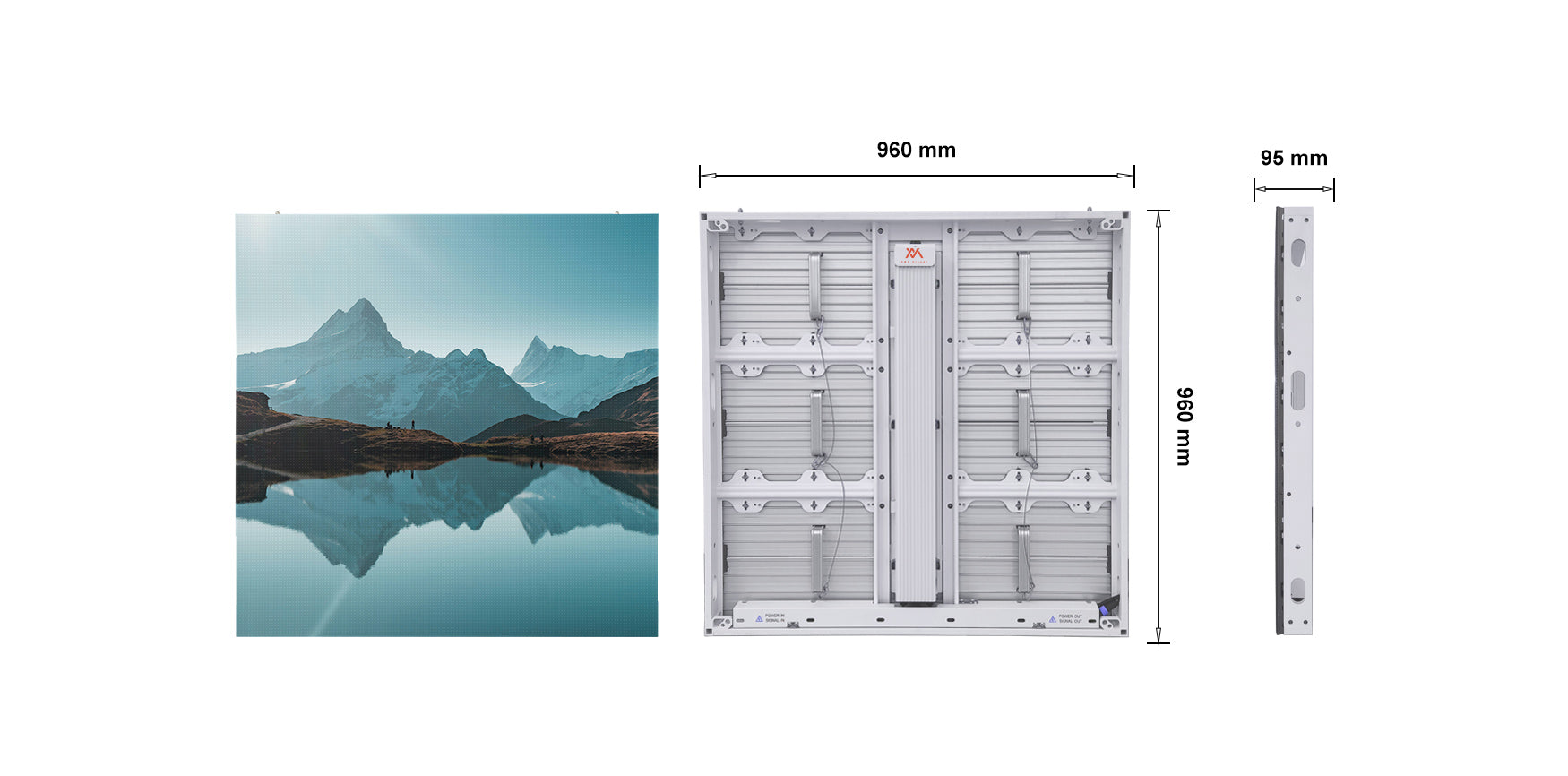

Product Dimensions

- The Saturn Series is VMX Visual's outdoor fixed installation LED display, built for permanent large-format deployments across billboard advertising, smart city screens, stadium perimeters, and retail facades.
- Die-cast aluminum construction delivers an IP65 front-and-rear weather rating, withstanding rain, dust, and operating temperatures from -20°C to +50°C without performance loss.
- At up to 12,000 nits, the Saturn Series maintains full image clarity in direct sunlight. 16-bit greyscale and 7,680 Hz refresh rate ensure broadcast-quality accuracy across all four pixel pitches — P5.7, P6.6, P8, and P10.
Key Features

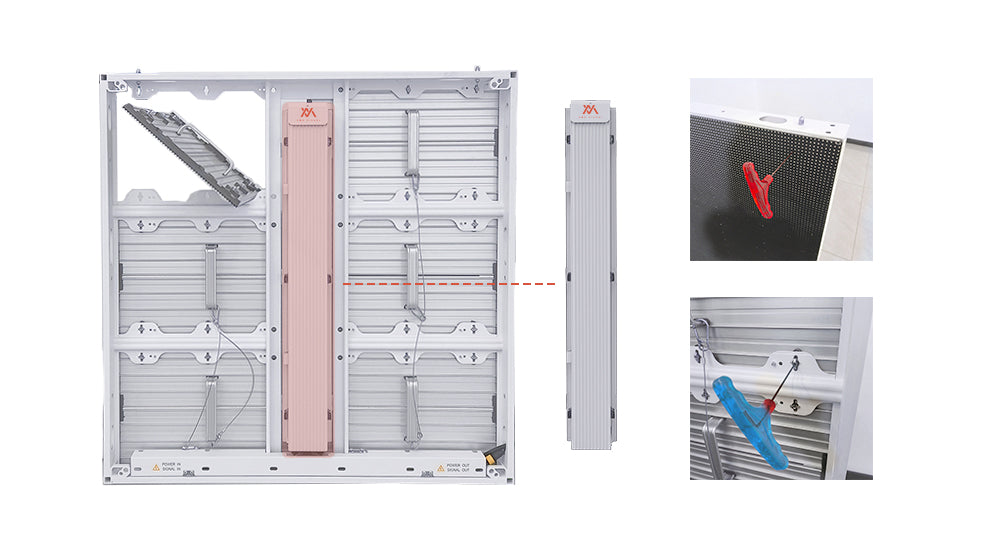

Front & Rear Access — Serviced Without Removing the Cabinet
- Modules lock with a quick-release buckle system — detachable and replaceable from both front and rear without tools.
- The power box is secured with thumb screws and removes as a single integrated unit from either side, eliminating the need to dismantle surrounding components during on-site maintenance.

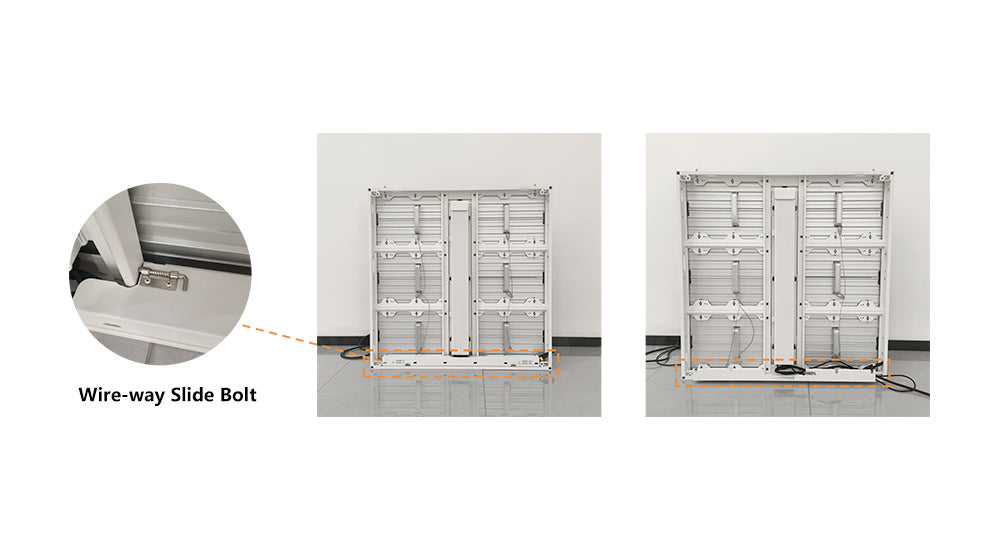

Hidden Cabling for a Sleek & Clean Aesthetic
- Featuring a flip-open bottom cable channel secured by stainless steel hinges and latch locks. This user-friendly design ensures effortless operation while keeping all cabling hidden for a clean, professional aesthetic.

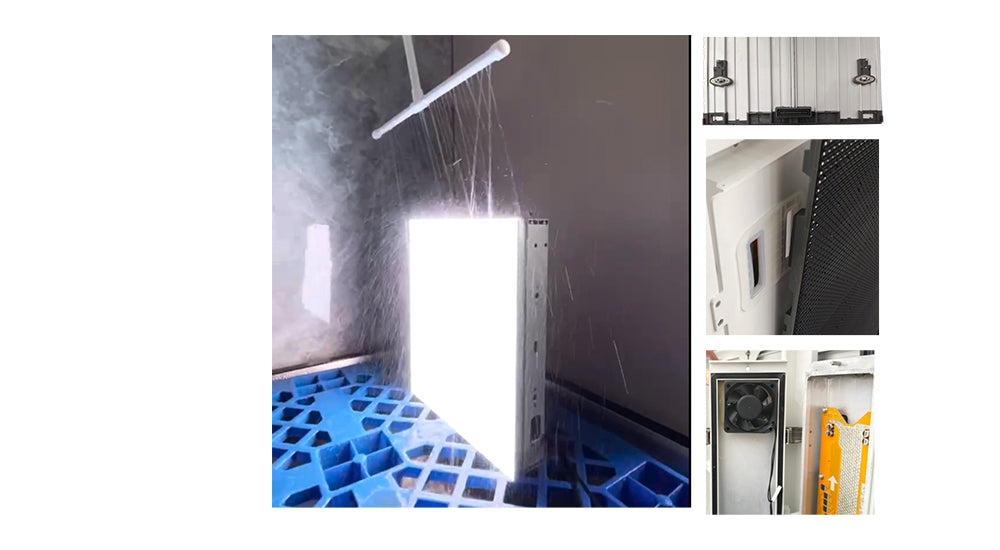

IP65 Rated — Fully Sealed Against Rain, Dust
- Every module is sealed with multi-layerrubber gaskets and rated up to IP65 — blocking dust, sustained rainfall, and high-pressure water jets.
- A specialised power box drainage design prevents moisture ingress at the cabinet's most vulnerable point. Corrosion-resistant throughout — built for coastal, humid, and high-pollution environments.

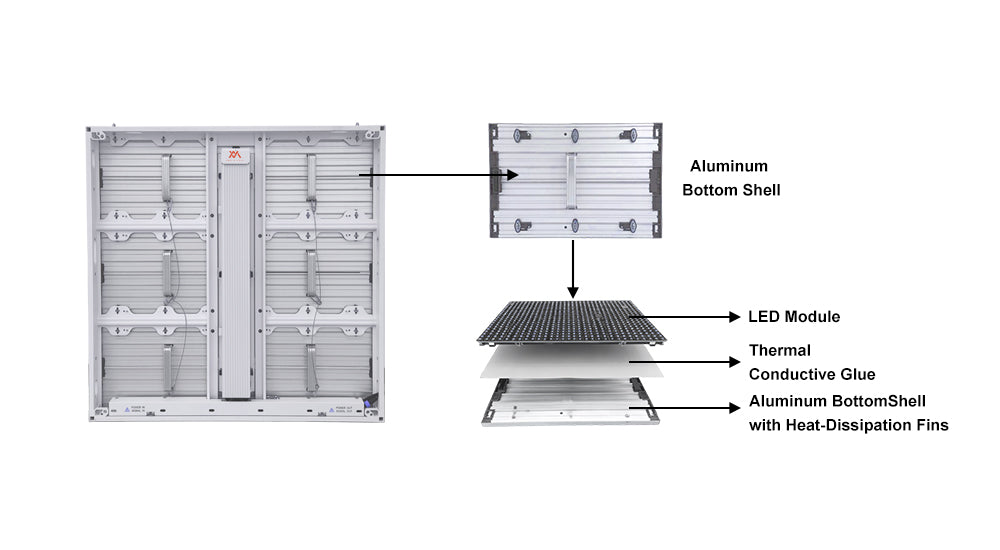

Built for Harsh Outdoor Environments
- Thermal Design: Aluminum base with cooling finsand high-conductivity thermal grease.
- Temp Delta < 3°C: Minimal difference betweenfront and rear surfaces.
- Ambient Rise < 20°C: Keeps operation cool formaximum reliability and lifespan.

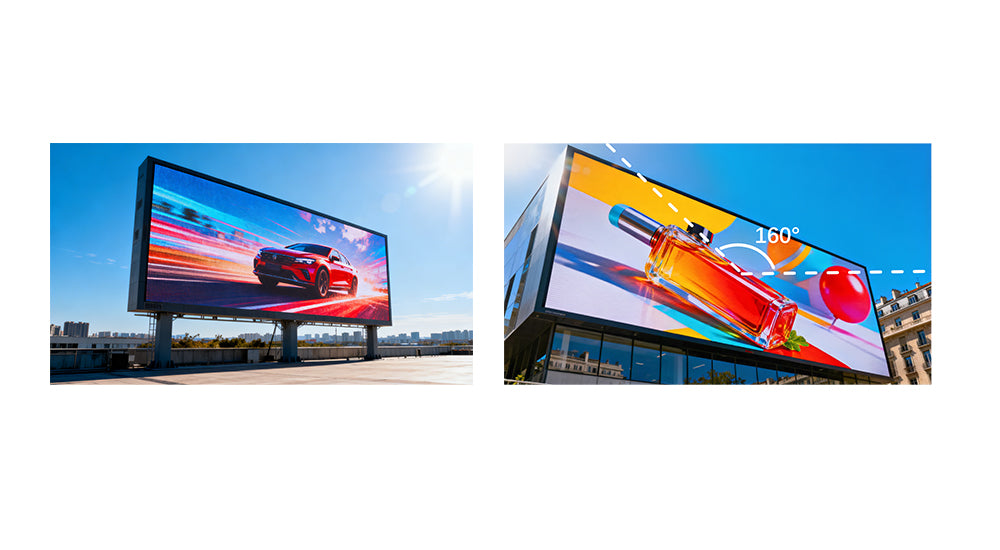

Expanded Application Scenarios
- At up to 12,000 nits, the Saturn Series maintains full image clarity in direct sunlight — no washout, no colour shift.
- Customised slim-profile LEDs deliver a 160° horizontal viewing angle, ensuring consistent brightness and colour accuracy from wide approach angles. Wider coverage means more impressions per installation, directly improving advertising ROI.

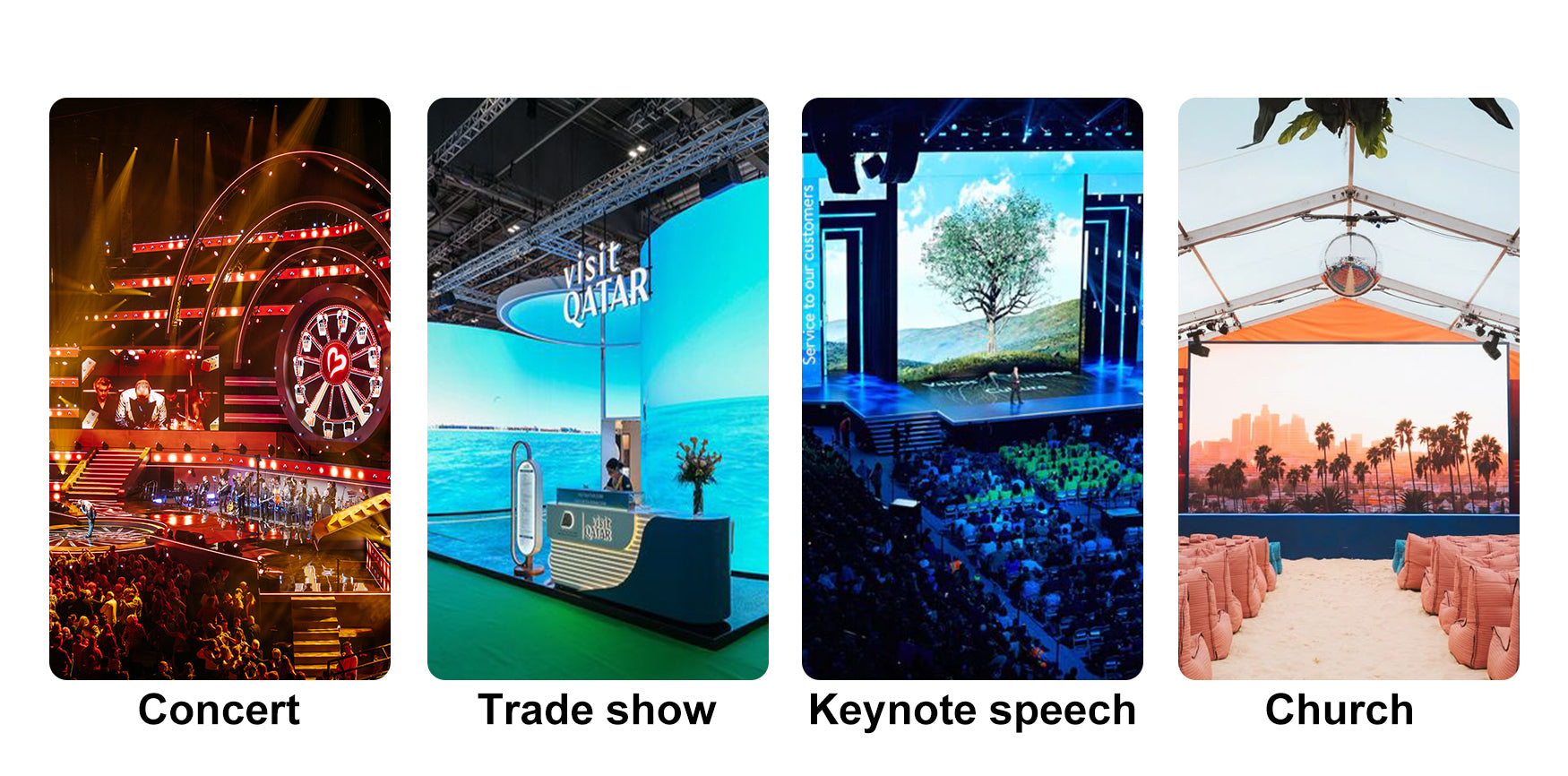

Applications Scenarios

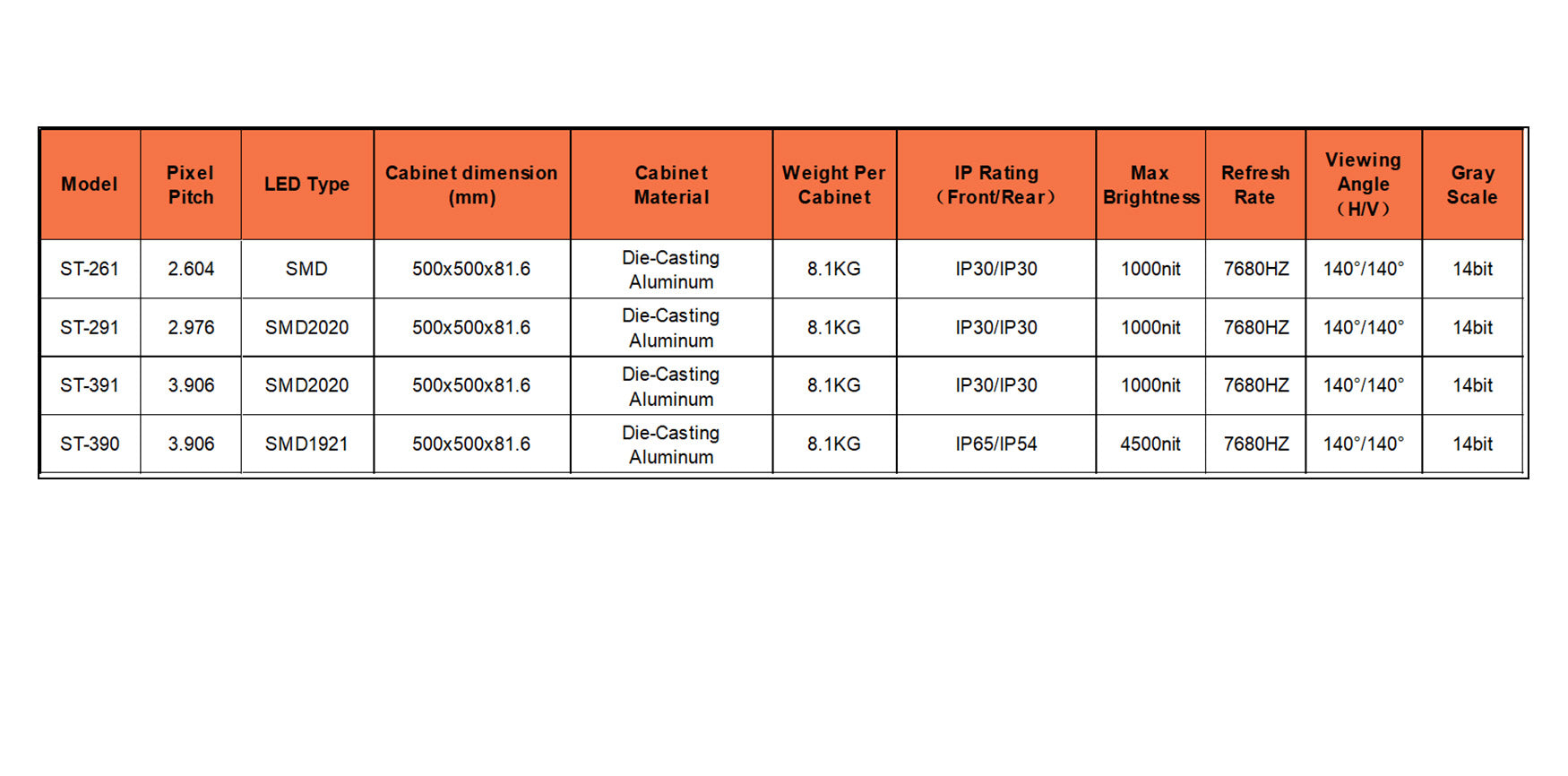

Product Specification
| Model | Application | Pixel Pitch (mm) | LED Package | Surface Treatment / Product Type | Cabinet Size (mm) | Cabinet Resolution (px) | Weight | Brightness (nits) | Grayscale (bit) | Contrast Ratio | Refresh Rate (Hz) | Viewing Angle (H/V) / Transparency | IP Rating (Front / Rear) | Power Consumption (Max / Avg, W/m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST-570 | Outdoor | 5.7 | SMD2725 | Module mask | 960 × 960 × 95 | 168 × 168 | 24 | ≥8000 | 16 | 5000:1 | 7680 | 160° / 140° | IP65 / IP65 | 480 / 110 |
| ST-660 | Outdoor | 6.67 | SMD2725 | Module mask | 960 × 960 × 95 | 144 × 144 | 24 | ≥8000 | 16 | 5000:1 | 7680 | 160° / 140° | IP65 / IP65 | 480 / 110 |
| ST-800 | Outdoor | 8.0 | SMD2727 | Module mask | 960 × 960 × 95 | 120 × 120 | 24 | ≥8000 | 16 | 5000:1 | 7680 | 140° / 140° | IP65 / IP65 | 480 / 110 |
