Venus-lite Series
Key Features

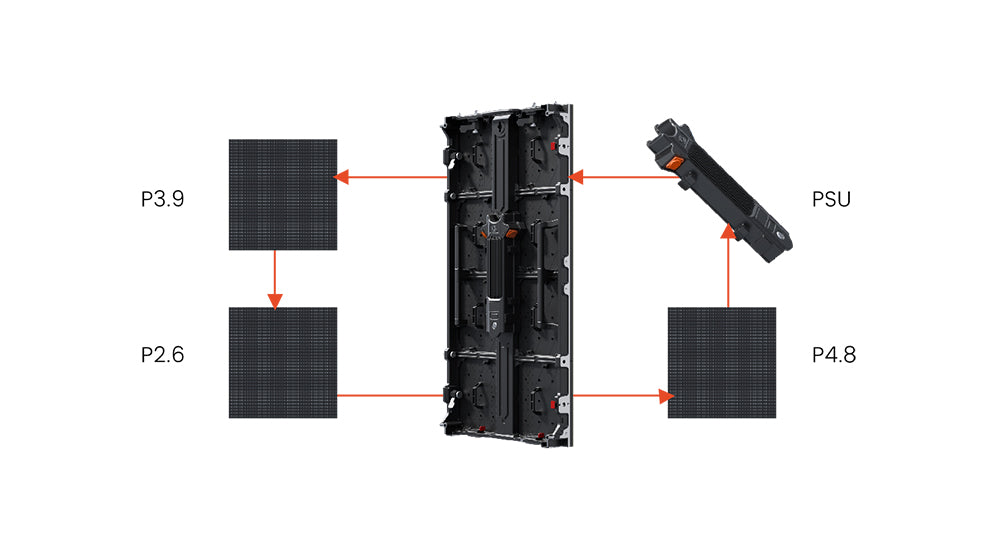

Standardized and Platform-based Design
- Standardized design ensures flexibility, easy installation, and wide adaptability.
- Platform-based design allows interchangeable power boxes and compatible modules, enabling efficient inventory management and cost savings.

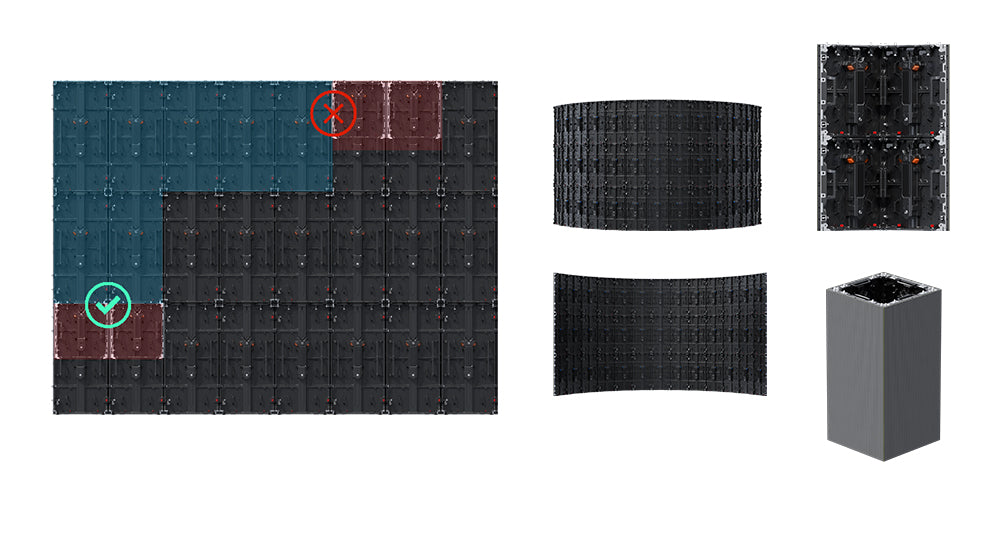

Flexible Splicing, Adaptable to More Scenarios
- Different-sized cabinets, as well as curved and straight-edge panels, can be seamlessly connected from either side — allowing for versatile configurations and dynamic stage designs on site.
Easy layout, easy disassembly
- Using highly integrated power and signal connectors, reducing the number of connectors in the power box, enabling one-hand operation for much easier maintenance and replacement.
Tool-Free Modular Maintenance
- Featuring a modular design, both the power box and LED modules can be removed by hand, allowing quick on-site maintenance during events.

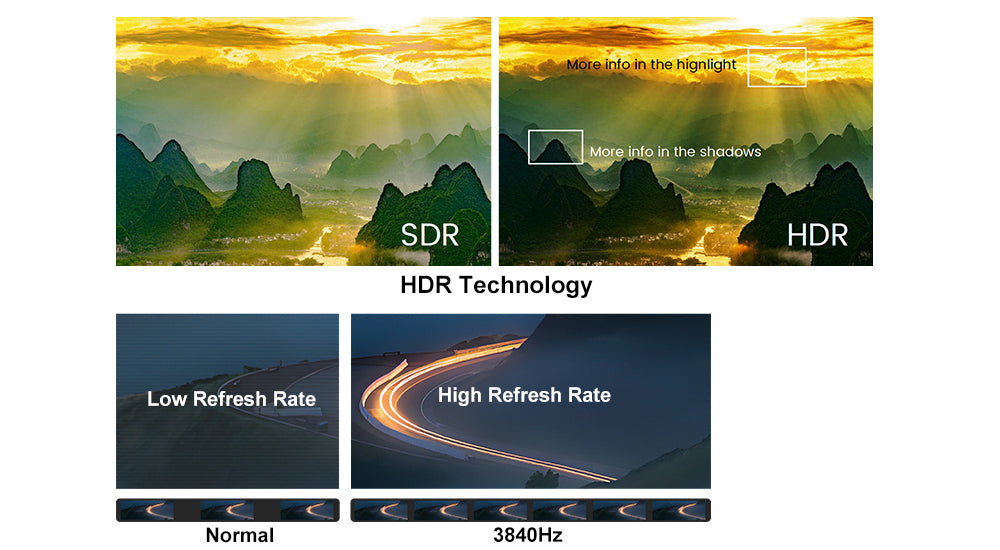

Brilliant Visuals, Beyond Expectation
- Standard with a 7680Hz refresh rate and HDR technology for superior visual performance.
Application Scenarios

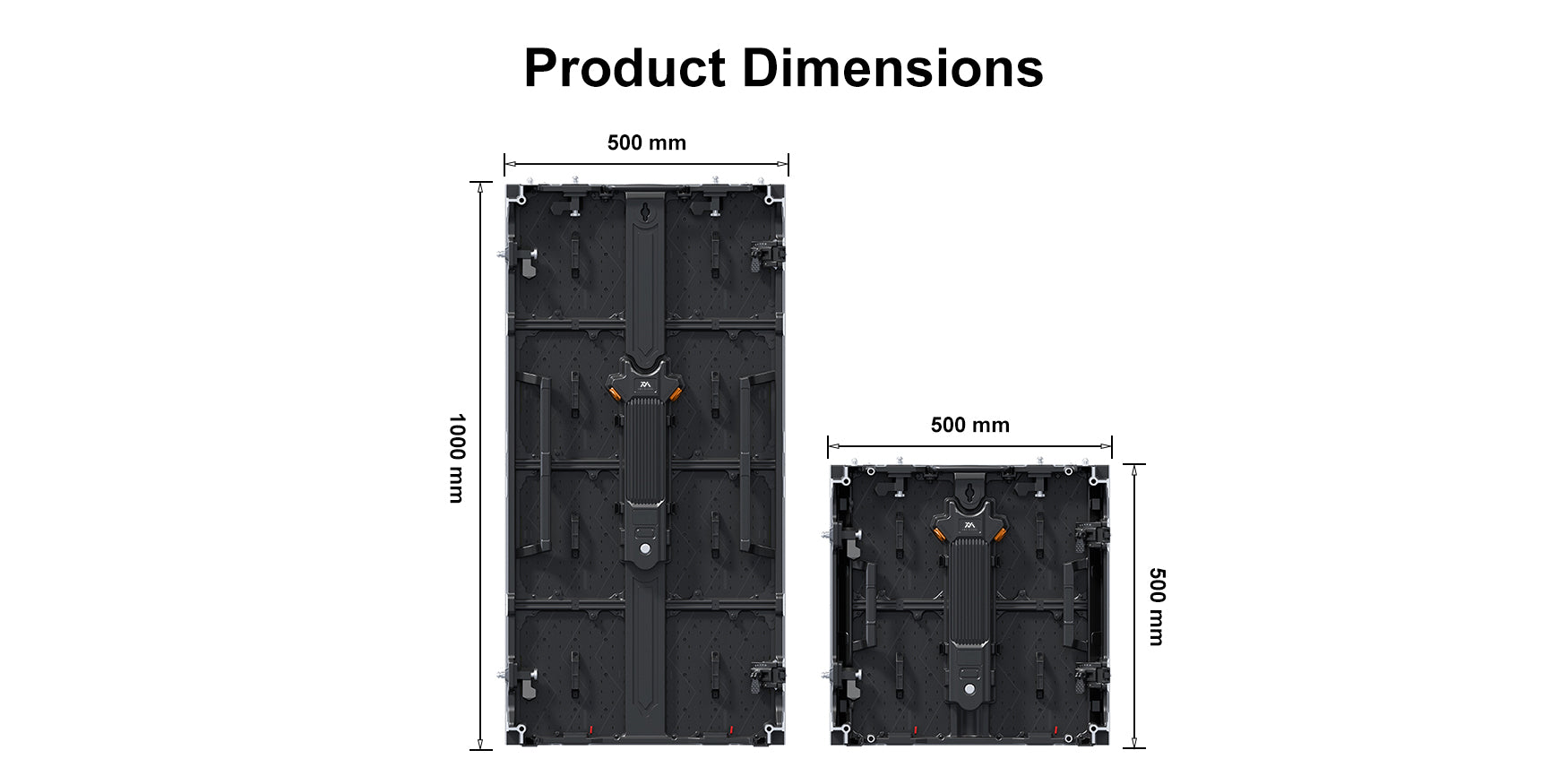

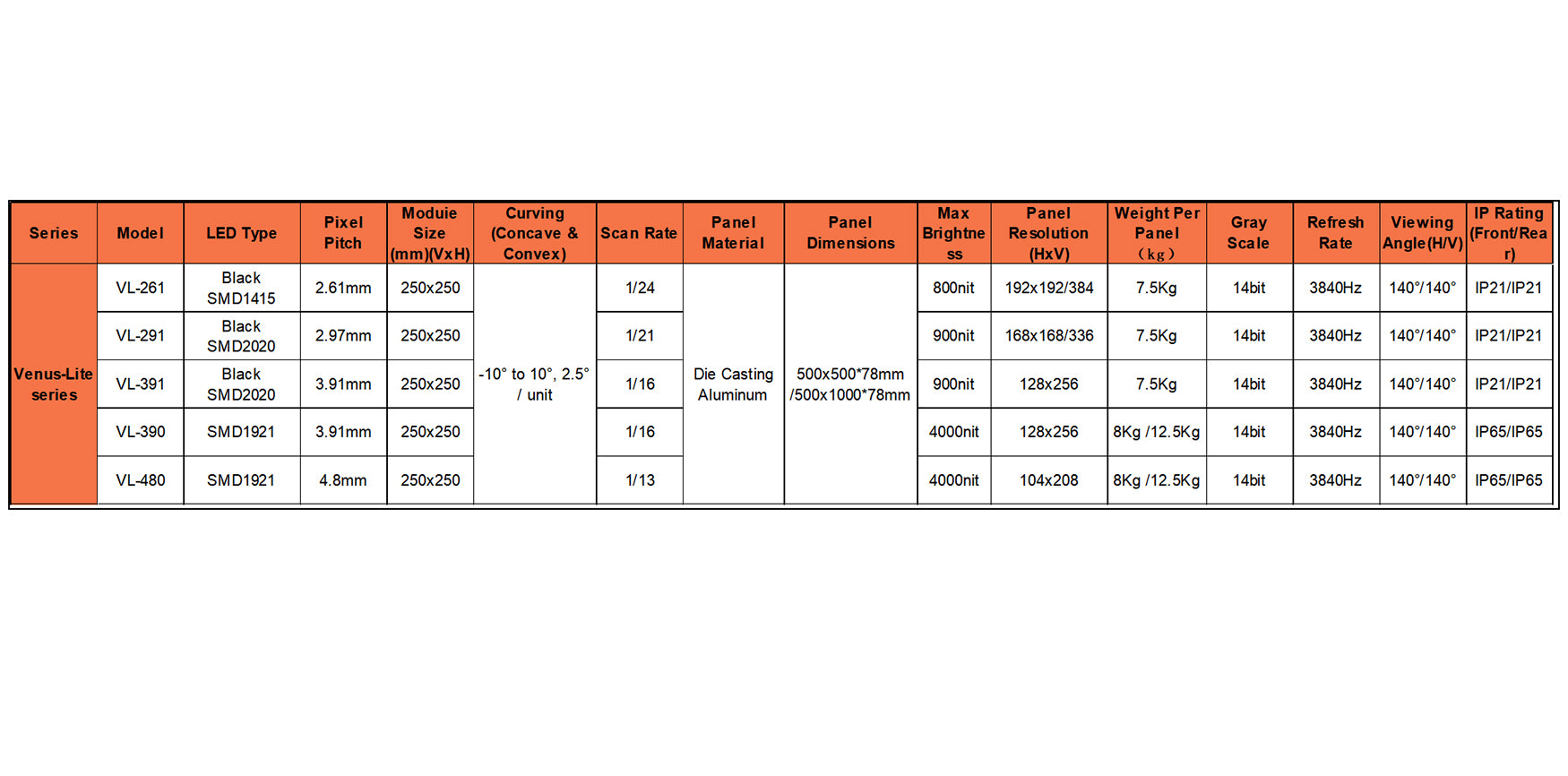

Product Specification
⬅ Swipe left/right to view full specifications ➡
| Series | Model | LED Type | Pixel Pitch | Module Size (mm)(VxH) | Curving (Concave & Convex) | Scan Rate | Panel Material | Panel Dimensions | Max Brightness | Panel Resolution (HxV) | Weight Per Panel (kg) | Gray Scale | Refresh Rate | Viewing Angle (H/V) | IP Rating (Front/Rear) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Venus-Lite series | VL-261 | Black SMD1415 | 2.61 mm | 250×250 mm | -10° to 10°, 2.5° / unit | 1/24 | Die Casting Aluminum | 500×500×78 mm / 500×1000×78 mm |
800 nits | 192×192 / 384 | 7.5 kg | 14 bit | 3840 Hz | 140°/140° | IP21/IP21 |
| VL-291 | Black SMD2020 | 2.97 mm | 250×250 mm | 1/21 | 900 nits | 168×168 / 336 | 7.5 kg | 14 bit | 3840 Hz | 140°/140° | IP21/IP21 | ||||
| VL-391 | Black SMD2020 | 3.91 mm | 250×250 mm | 1/16 | 900 nits | 128×256 | 7.5 kg | 14 bit | 3840 Hz | 140°/140° | IP21/IP21 | ||||
| VL-390 | SMD1921 | 3.91 mm | 250×250 mm | 1/16 | 4000 nits | 128×256 | 8 kg / 12.5 kg | 14 bit | 3840 Hz | 140°/140° | IP65/IP65 | ||||
| VL-480 | SMD1921 | 4.8 mm | 250×250 mm | 1/13 | 4000 nits | 104×208 | 8 kg / 12.5 kg | 14 bit | 3840 Hz | 140°/140° | IP65/IP65 |
