Venus-touring Ⅱ Series
Focus on your rental experience.
Key Features
Ultra-Lightweight Design — Easy for One-Person Handling

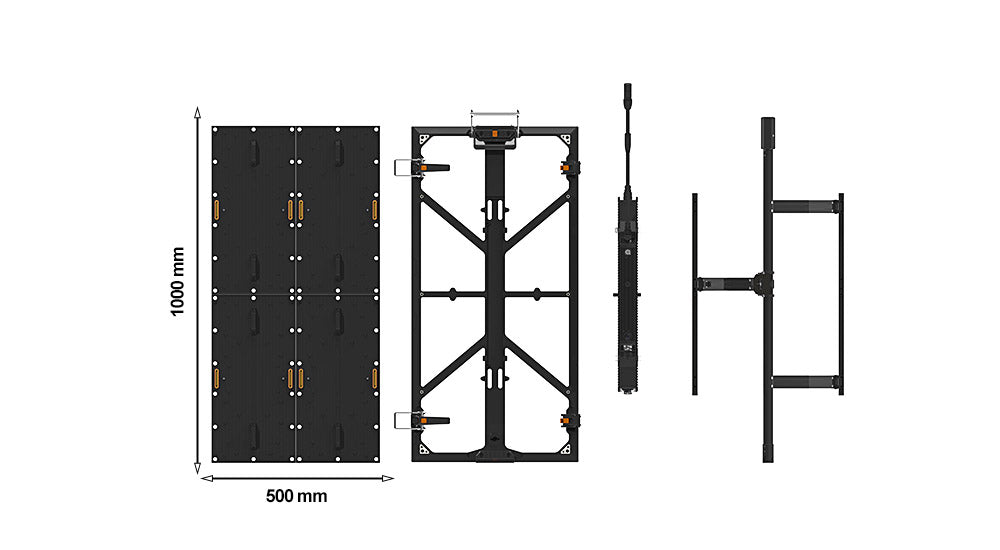

- Full carbon fiber & magnesium alloy design.500x1000mmcabinet weighs only 9.8kg (with wind brace) — 7kg lighterThan GEN 1. Currently the lightest in the industry.

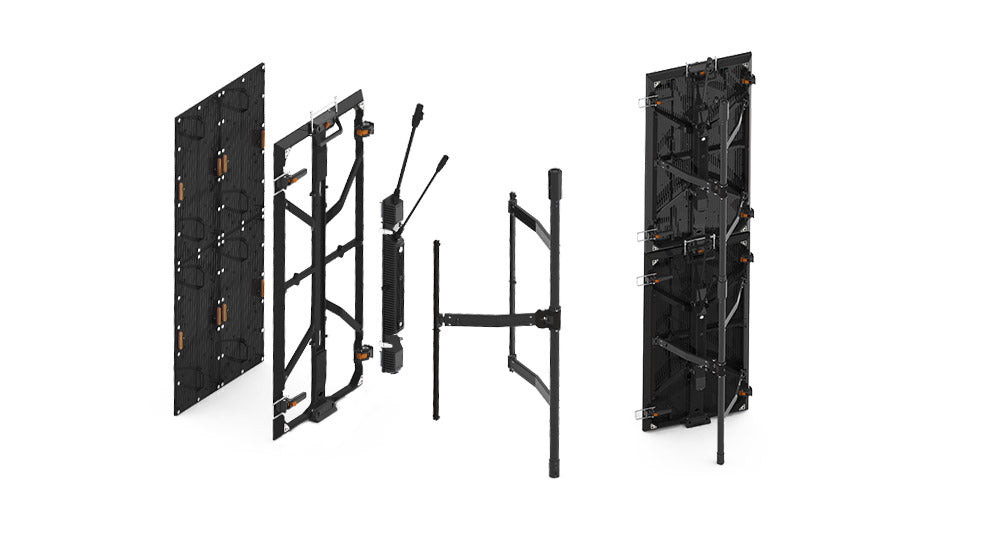

Ingenious Structure for Rapid Setup

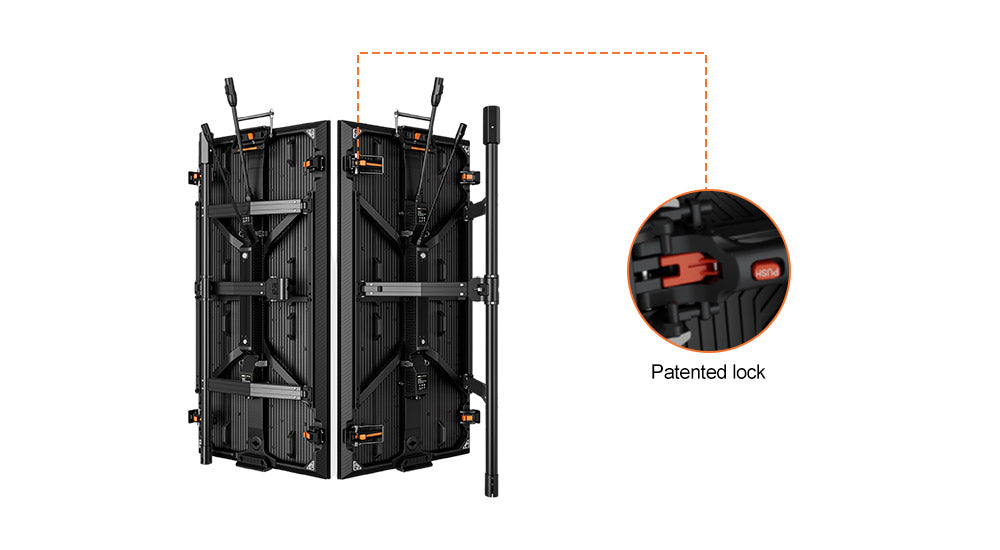

- Featuring VMX’s proprietary quick-lock system with anti-drop safety, enabling one-hand operation and faster rigging.
Rigorously Safe — Built for Touring Reliability
- Designed with 7x safety factor. Supports 17 cabinets (with wind brace) or 22 cabinets (without) per vertical hang. Withstands wind up to 20m/s.

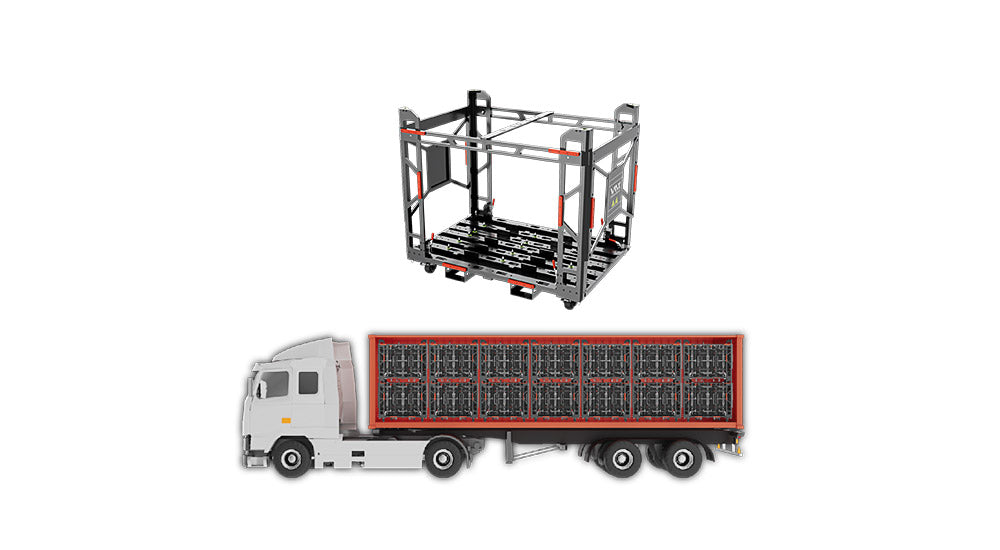

Dolly Innovation — Smarter Storage & rigging
- 15-cabinets capacity under 250kg. <80cm wide allows 3 dollies per truck row. Cabinets can be daisy-chained directly from dollies to truss.

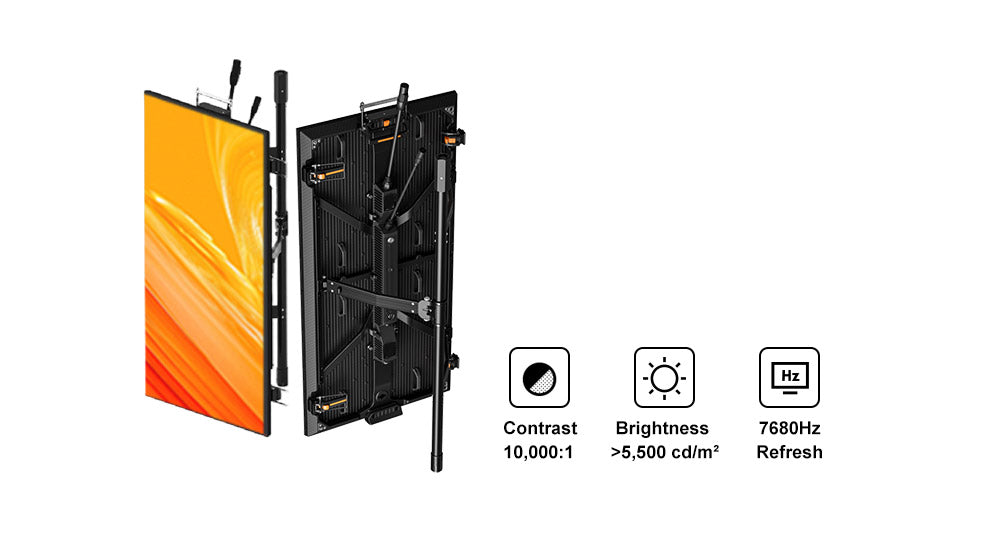

Stunning Visuals with High Contrast & Brightness
- Customized LEDs and optical mask deliver 10,000:1 contrast, up to 5500 nits brightness, and a 7680Hz refresh rate for premium visuals.

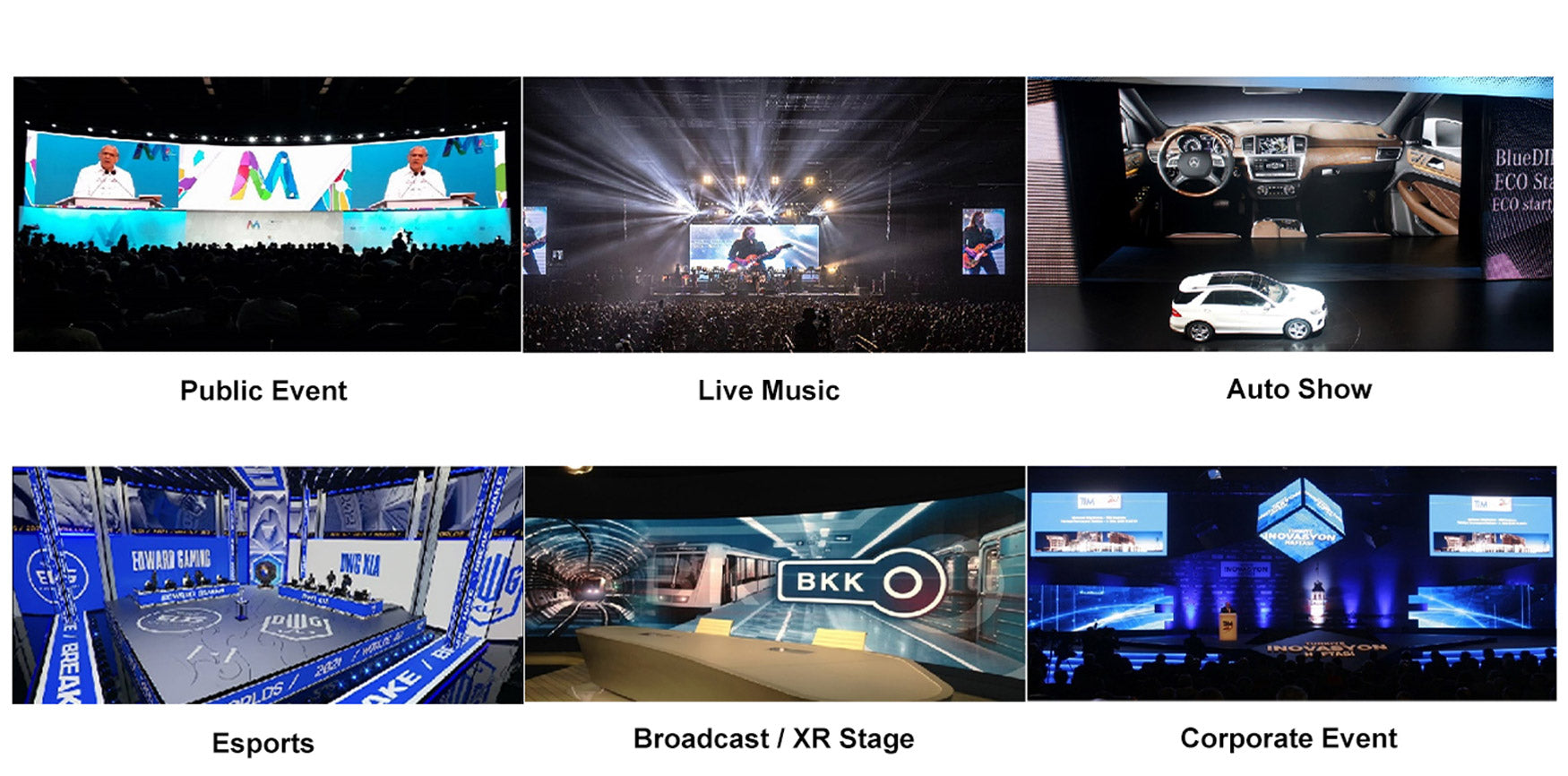

Application Scenarios

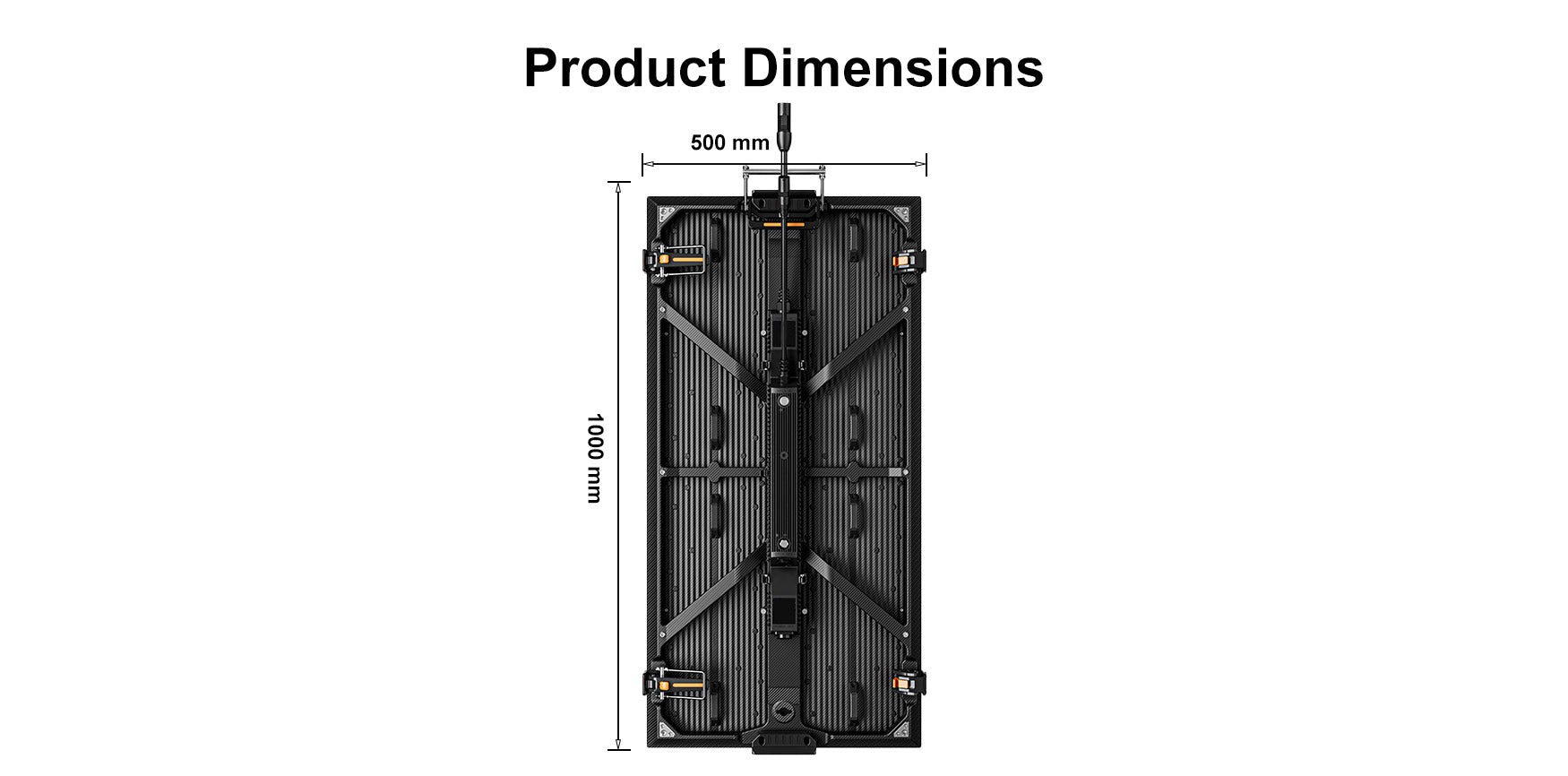

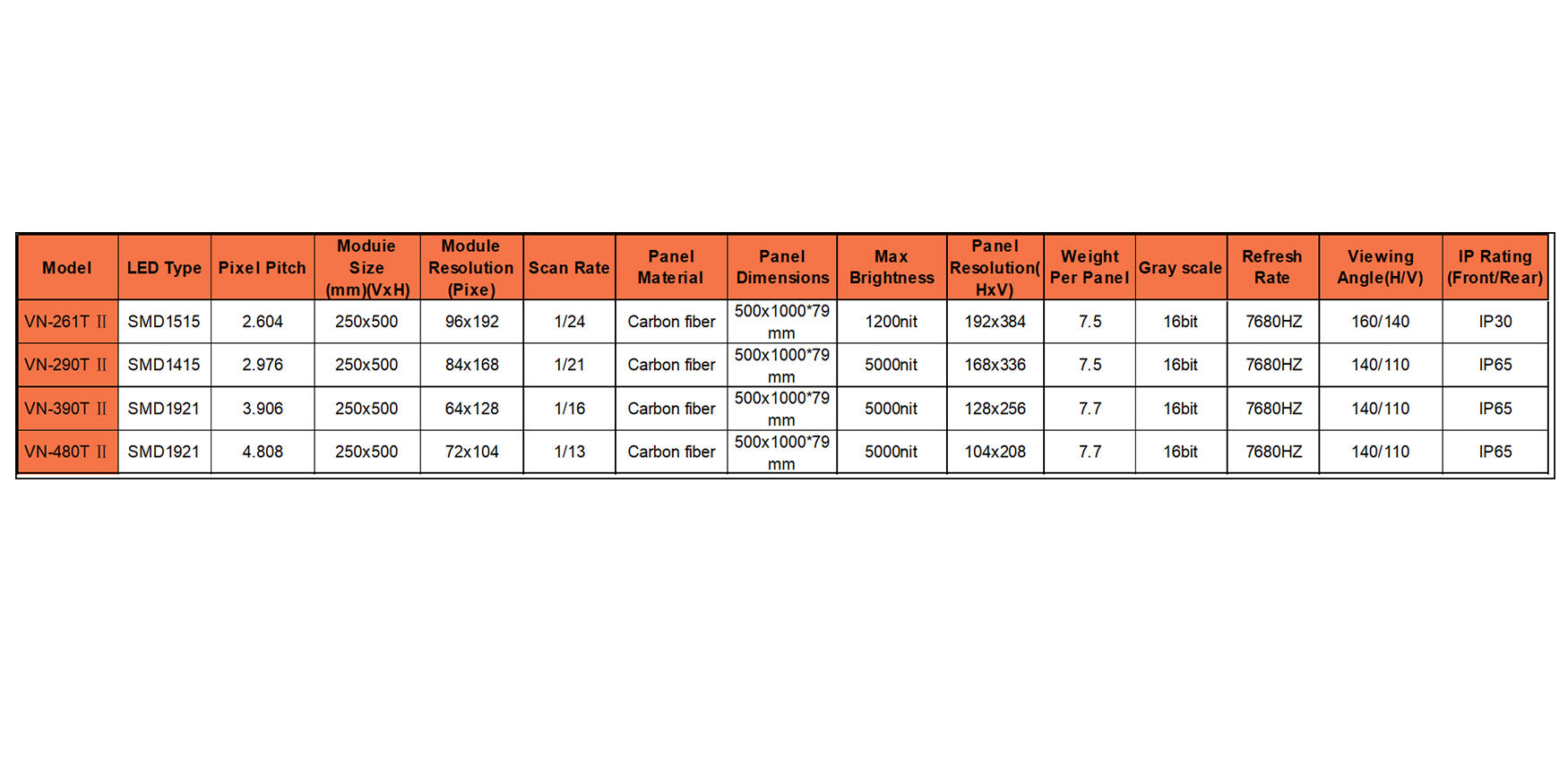

Product Specification
⬅ Swipe left/right to view full specifications ➡
| Series | Model | LED Type | Pixel Pitch | Module Size (WxH) | Module Resolution | Panel Material | Panel Dimensions | Max Brightness | Panel Resolution | Weight/Panel | Gray Scale | Refresh Rate | Viewing Angle (H/V) | IP Rating (F/R) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Venus-touring II | VN-261T II | SMD1515 | 2.604 mm | 250×500 mm | 96×192 | Carbon Fiber | 500×1000×79 mm | 1200 nits | 192×384 | 7.5 kg | 16 bit | 7680 Hz | 160°/140° | IP30 |
| VN-290T II | SMD1415 | 2.976 mm | 250×500 mm | 84×168 | Carbon Fiber | 500×1000×79 mm | 5000 nits | 168×336 | 7.5 kg | 16 bit | 7680 Hz | 140°/110° | IP65 | |
| VN-390T II | SMD1921 | 3.906 mm | 250×500 mm | 64×128 | Carbon Fiber | 500×1000×79 mm | 5000 nits | 128×256 | 7.7 kg | 16 bit | 7680 Hz | 140°/110° | IP65 | |
| VN-480T II | SMD1921 | 4.808 mm | 250×500 mm | 72×104 | Carbon Fiber | 500×1000×79 mm | 5000 nits | 104×208 | 7.7 kg | 16 bit | 7680 Hz | 140°/110° | IP65 |
