Zeus Series
The Zeus series is an indoor fixed-installation LED display product featuring a high-precision die-cast aluminum cabinet structure and front-maintenance magnetic modules. The design makes it light-weight, slim and easy to install and maintain. With a variety of larger sizes available, to support creative configurations, including 90-degree right-angle splicing, offering flexibility while reducing costs. Furthermore, it supports optional intelligent modules configuration and capable to deliver brightness up to 3,500 nits, presenting clear and vibrant image quality. It is widely used in display applications such as retail malls, hotels, transportation hubs, commercial properties, conference rooms, exhibitions and theme parks.

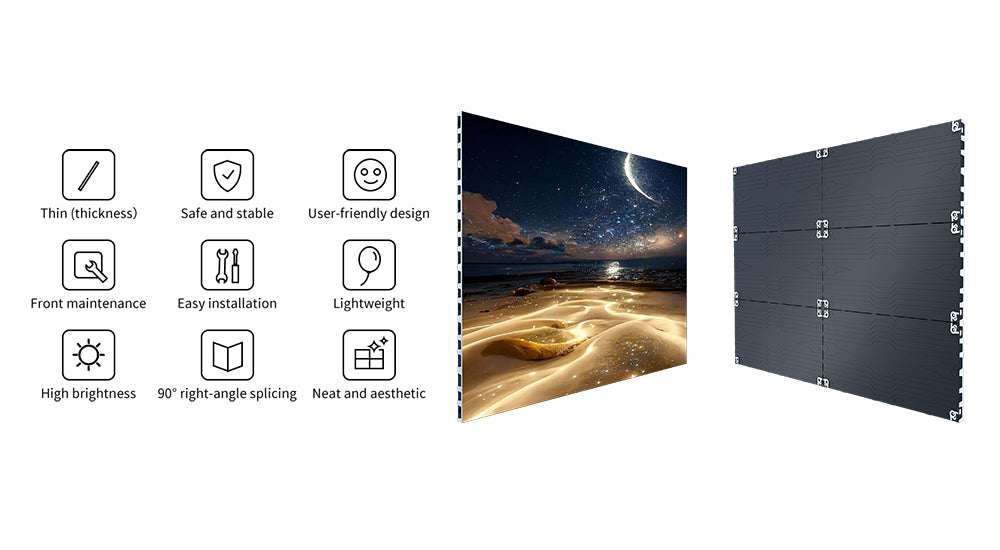

Key Features
High-Precision Die-Cast Aluminum Structure
Lightweight, high strength, excellent flatness, and corrosion-resistant. Precision die-casting ensures high assembly accuracy and enables complex structural designs.

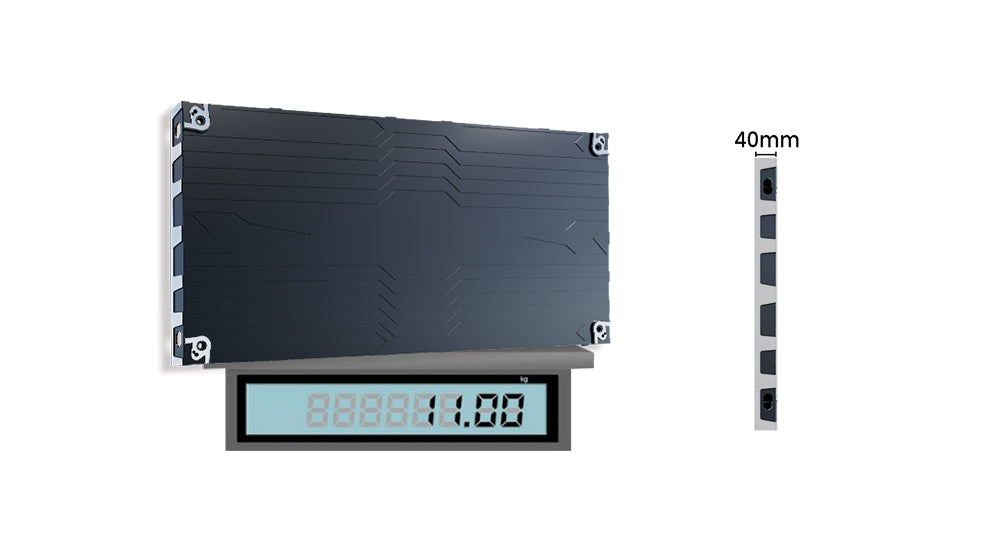

Slim & Portable Design
With a cabinet thickness of just 40mm and a weight range of 2–11kg, it’s ideal for embedded wall installations and blends seamlessly into various environments.

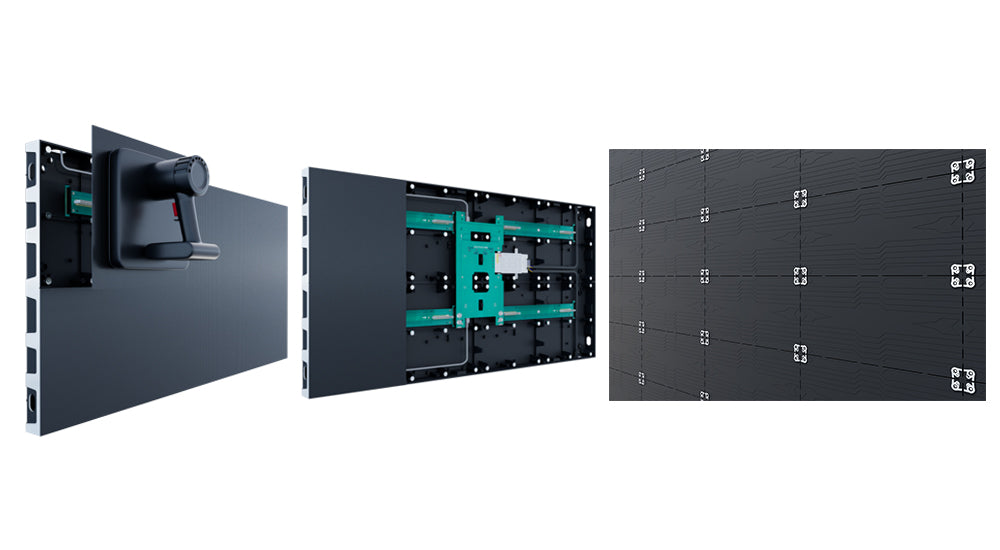

Fast Installation & Maintenance
Quick-lock connections between cabinets, wireless hard connections for modules, and front-maintenance magnetic design allow for efficient assembly and disassembly.
Flexible Sizes & Creative Splicing

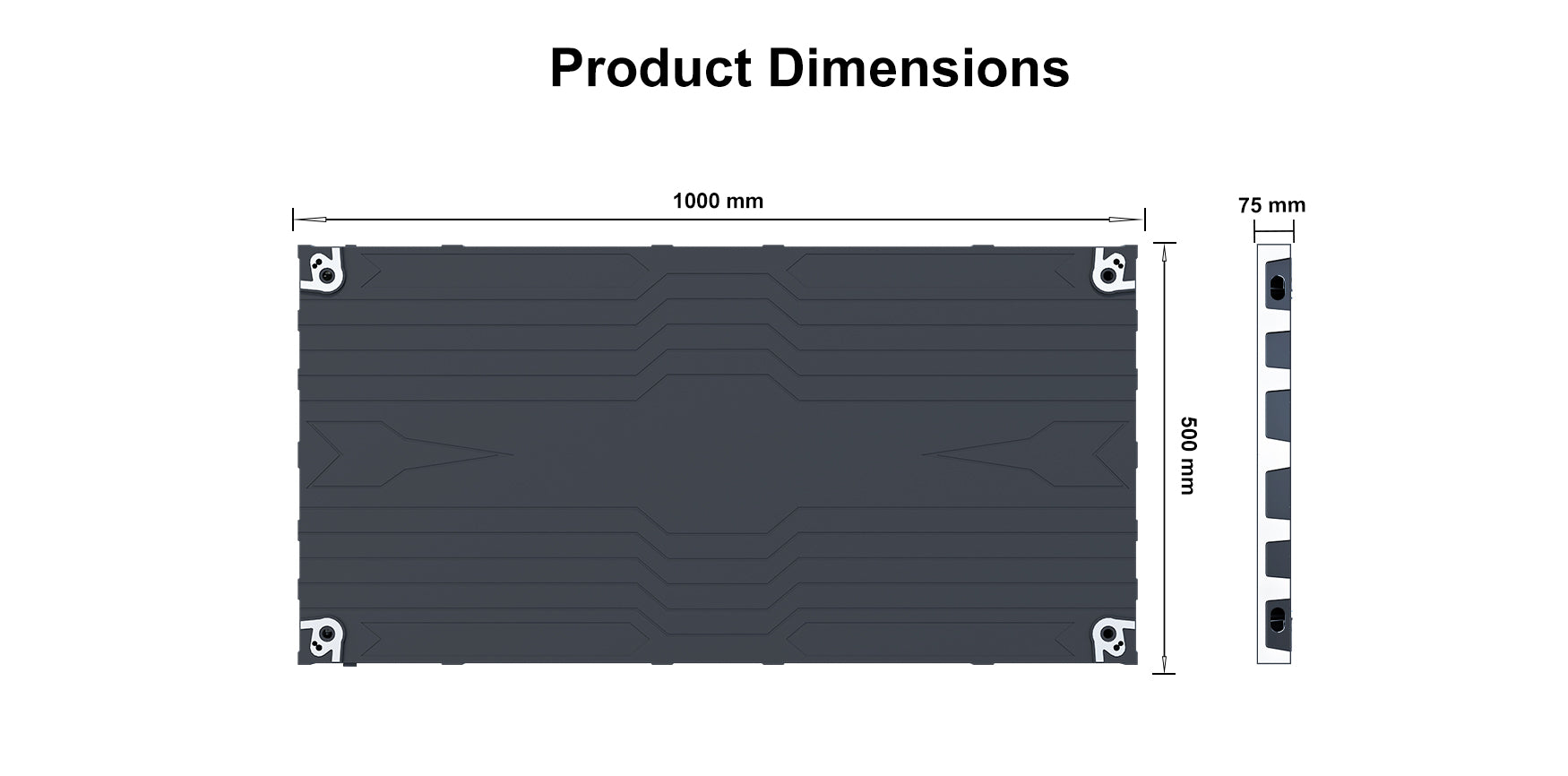

Available in 1000x500mm, 1000x250mm, 750x250mm, and 250x250mm sizes. Supports 90-degree corners and 3D display effects for creative configurations.

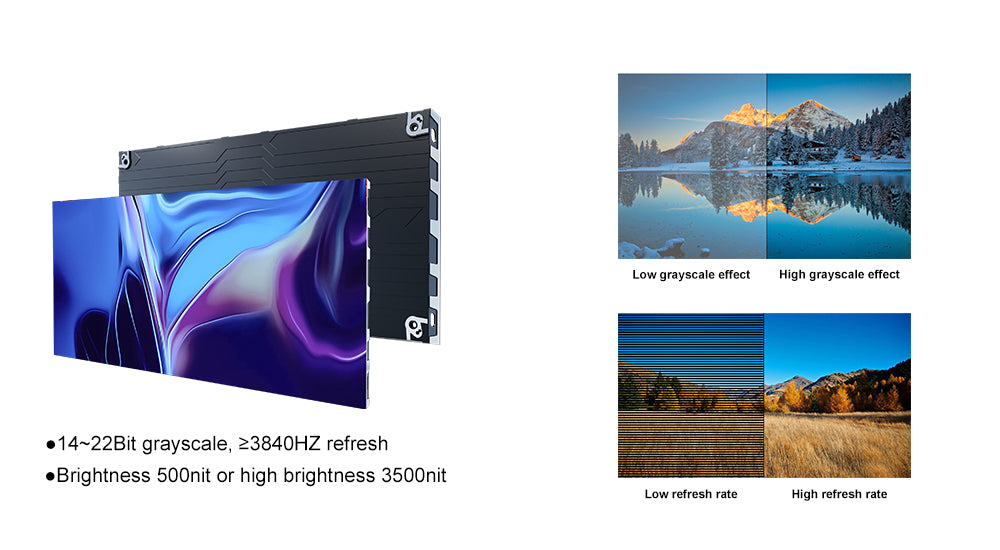

High Brightness & Smart Features
Optional brightness up to 3500 nits and intelligent micro-module design meet diverse display requirements.

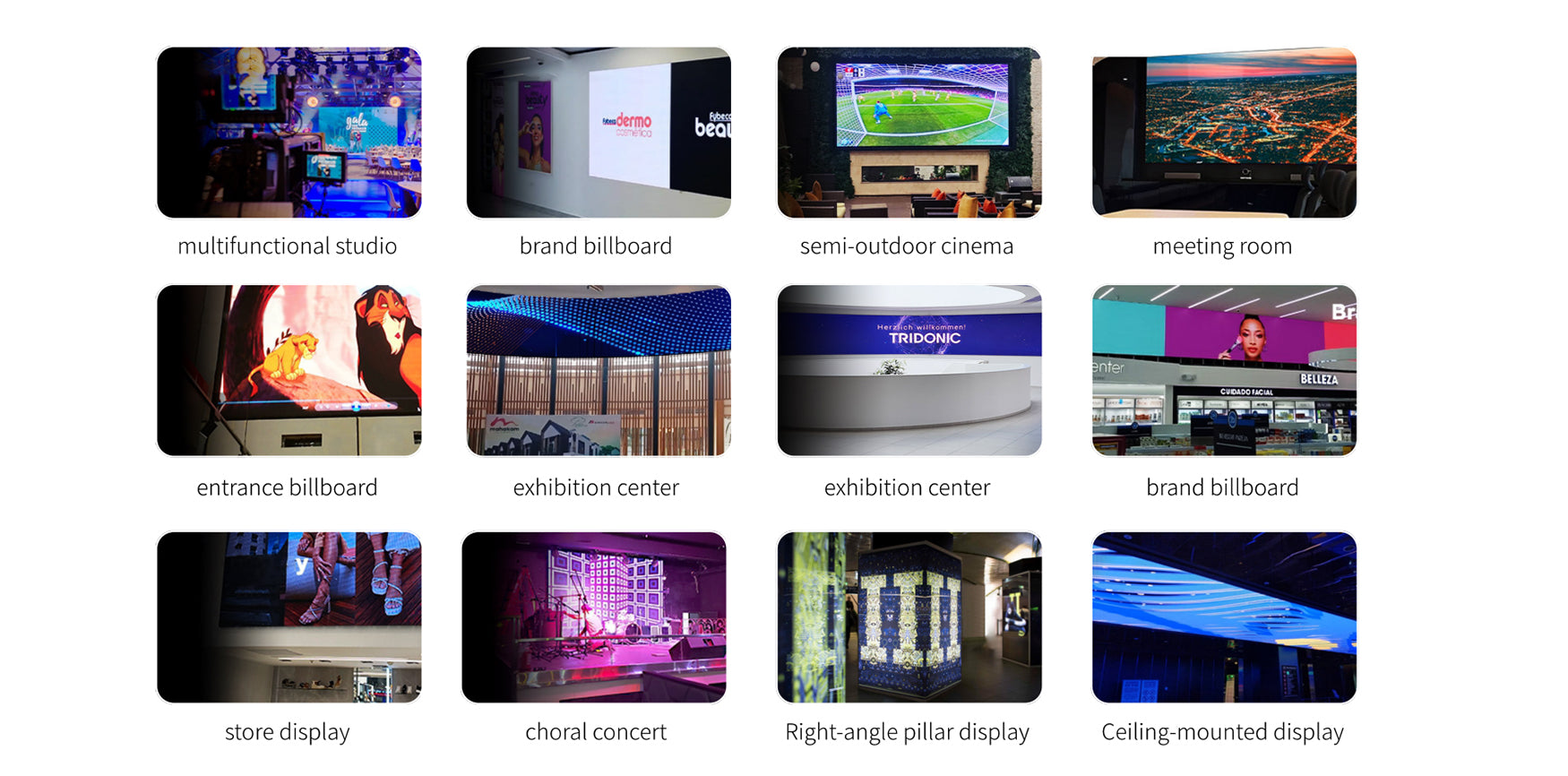

Applications Scenarios

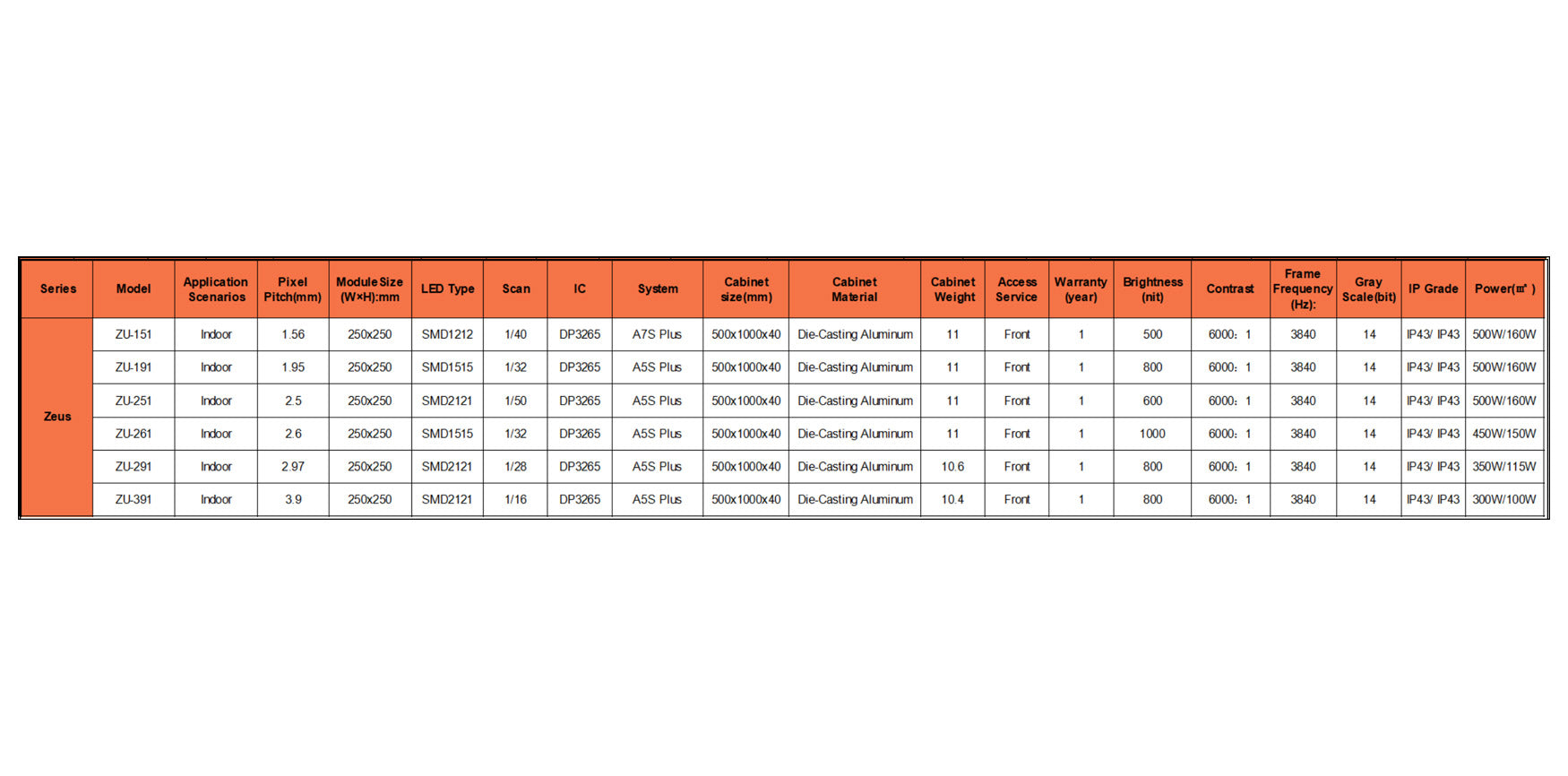

Product Specification
| Series | Model | Application Scenarios | Pixel Pitch (mm) | Module Size (WxH) mm | LED Type | Scan | IC | System | Cabinet Size (mm) | Cabinet Material | Cabinet Weight (kg) | Access Service | Warranty (year) | Brightness (nit) | Contrast | Frame Frequency (Hz) | Gray Scale (bit) | IP Grade | Power (Max/Avg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Zeus | ZU-151 | Indoor | 1.56 | 250x250 | SMD1212 | 1/40 | DP3265 | A7S Plus | 500x1000x40 | Die-Casting Aluminum | 11 | Front | 1 | 500 | 6000:1 | 3840 | 14 | IP43/IP43 | 500W/160W/m² |
| ZU-191 | 1.95 | 250x250 | SMD1515 | 1/32 | DP3265 | A5S Plus | 500x1000x40 | 11 | Front | 1 | 800 | 6000:1 | 3840 | 14 | IP43/IP43 | 500W/160W/m² | |||
| ZU-251 | 2.5 | 250x250 | SMD2121 | 1/50 | DP3265 | A5S Plus | 500x1000x40 | 11 | Front | 1 | 600 | 6000:1 | 3840 | 14 | IP43/IP43 | 500W/160W/m² | |||
| ZU-261 | 2.6 | 250x250 | SMD1515 | 1/32 | DP3265 | A5S Plus | 500x1000x40 | 11 | Front | 1 | 1000 | 6000:1 | 3840 | 14 | IP43/IP43 | 450W/150W/m² | |||
| ZU-291 | 2.97 | 250x250 | SMD2121 | 1/28 | DP3265 | A5S Plus | 500x1000x40 | 10.6 | Front | 1 | 800 | 6000:1 | 3840 | 14 | IP43/IP43 | 350W/115W/m² | |||
| ZU-391 | 3.9 | 250x250 | SMD2121 | 1/16 | DP3265 | A5S Plus | 500x1000x40 | 10.4 | Front | 1 | 800 | 6000:1 | 3840 | 14 | IP43/IP43 | 300W/100W/m² |
