Mobile LED Solution for 47th GEMOCO Ster van Zuid-Limburg 2026: Venus-Lite P3.9 Case Study

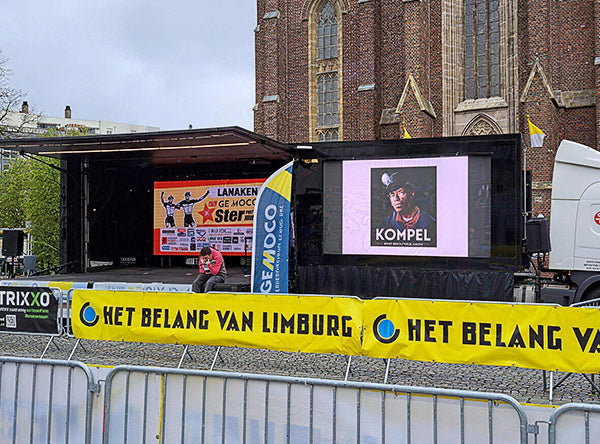

In April 2026, VMX Visual supplied six Venus-Lite P3.9 outdoor mobile LED displays (totaling 42m²) for the 47th GEMOCO Ster van Zuid-Limburg cycling race in Lanaken,  Belgium — one of the region's most prominent annual cycling events. The display was mounted on six truck and required an engineering approach optimised for structural stability during transit and vibration resistance during operation, while maintaining full outdoor weather protection throughout the event.

VMX Visual supplied the Venus-Lite Series P3.9 in a 3.5m × 2m (x6 Units) configuration, covering 42m² of active display area. The Venus-Lite was selected for this application based on its outdoor IP65 rating, high-vibration structural design, and a mechanical specification engineered specifically for truck-mounted and high-intensity rental environments where display stability cannot be compromised.

Module fixing was the primary structural consideration for a truck-mounted installation. Unlike standard indoor fine pitch panels where modules are retained by magnetic or single-point locking systems, the Venus-Lite P3.9 uses a six-screw module fixing design. Each module is independently secured to the cabinet frame with six threaded fasteners, distributing vibration loads across six contact points rather than one or two. This eliminates the risk of module loosening during road transit — a failure mode that is common on truck-mounted displays using lighter retention systems.

Power supply retention presents a similar challenge on mobile installations. A power supply that vibrates loose during transit can cause arcing, intermittent power loss, or permanent component damage. The Venus-Lite uses a four-latch power supply enclosure — the supply is secured by four independent mechanical latches that maintain a positive, rattle-free connection under continuous vibration. This is a meaningfully different level of mechanical security compared to single-latch or friction-fit power supply designs commonly found on rental panels optimised for speed of servicing rather than structural integrity.

Brightness was specified at 4,500 nits to ensure full content visibility during the outdoor cycling event, including direct sunlight conditions in the Belgian spring. At 3.91mm pixel pitch, the display delivers sharp image quality at typical event viewing distances of 4 metres and beyond, maintaining readability for spectators along the race route.

Weather protection is provided by IP65 front and rear rating, ensuring reliable operation through the variable outdoor conditions typical of Belgian spring events — rain, wind, and temperature fluctuation — without any impact on display performance or structural integrity.

• ▸Zero structural failures across the full event period — Six-screw module fixing and four-latch power supply retention maintained complete structural integrity throughout road transit and on-site operation, with no module movement or power interruptions recorded.
• ▸Full daylight visibility throughout the race — 4,500 nits brightness maintained clear content display under direct Belgian spring sunlight at all viewing distances along the race route.
•
• ▸Continuous operation through variable weather conditions — IP65 front and rear protection maintained reliable display performance across rain and wind conditions during the event, with no weather-related interruptions.
• ▸Fast turnaround from EU stock — Fulfilled from VMX Visual's Belgium warehouse, the display was delivered and installation-ready within the project's tight timeline — a critical requirement for a fixed-date sporting event with no flexibility on schedule.

Installing an LED display on a truck or trailer introduces structural demands that standard rental panels are not designed to handle. Most rental LED panels are optimised for fast assembly and disassembly at static venues — their module fixing and power supply retention systems prioritise speed of servicing over mechanical security under sustained vibration. In a truck-mounted application, this results in progressive loosening of components during road transit, leading to intermittent failures, visible pixel dropout, or complete power loss at the worst possible moment.

• ▸Six-screw module fixing for vibration resistance — Each module in the Venus-Lite P3.9 is secured to the cabinet frame with six individual threaded fasteners. Under road vibration, the load is distributed across six independent contact points. This is mechanically equivalent to a bolted structural joint rather than a clip or magnetic retention — the module cannot work loose progressively over repeated transit cycles in the way that single-point or magnetic fixing systems can.
• ▸Four-latch power supply design for secure electrical connection — The power supply in the Venus-Lite uses a four-latch enclosure that creates a positive mechanical lock at four independent points. Unlike friction-fit or single-latch designs, four-latch retention maintains a rattle-free connection under continuous vibration. A loose power supply connection is one of the highest-risk failure modes in mobile LED installations — electrical arcing, voltage fluctuation, and power supply damage are all downstream consequences of inadequate retention in high-vibration environments.
• ▸IP65 front and rear for permanent exposure — Truck-mounted displays operate in fully exposed outdoor conditions with no shelter protection. IP65 front and rear is the non-negotiable minimum for any installation where the display travels between locations and operates in uncontrolled weather environments.
• ▸No frequent disassembly requirement — Unlike stage rental panels that are assembled and disassembled for every event, a truck-mounted display remains installed for extended periods. The Venus-Lite's six-screw module fixing is appropriate for this use pattern — the additional fasteners add minimal assembly time while delivering significantly greater structural security over the installation's operational life.

Deploying a mobile LED display for a high-profile cycling event in Belgium introduced a series of specific technical and logistical challenges. Below is a full account of each challenge and how it was resolved.
