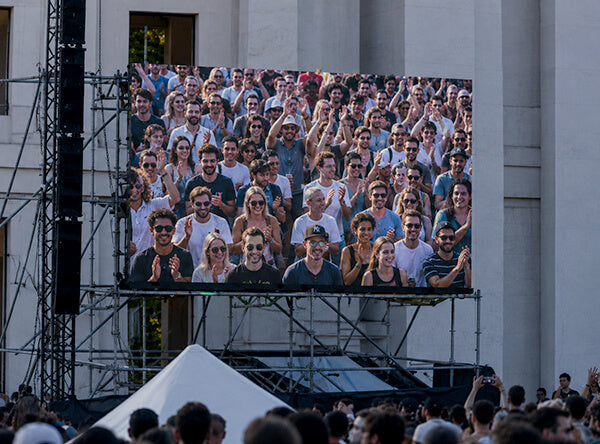

In July 2025, VMX Visual completed a landmark Pro-AV installation in Rome, Italy, deploying a massive 1,000-square-meter outdoor rental LED display. Utilizing our flagship Carbon Fiber Rental Series (VEUNS-390T) with a precise P2.9mm pixel pitch, this mega-scale digital architecture was engineered to withstand intense Mediterranean sunlight and rapid rental rigging workflows. The project sets an international precedent for large-scale live event staging and structural efficiency.
Hosting a live event on a 1,000-square-meter canvas in historic Rome demands rigorous safety compliance, uncompromised structural integrity, and impeccable image quality. For this premium outdoor staging project, the client required an ultra-fine P2.9mm pixel pitch array capable of displaying high-definition graphics across a massive footprint, while maintaining an exceptionally low structural load on the temporary scaffolding arrays.
The VMX VN-390T was selected as the definitive technical solution. With its large-format 500x1000x79mm cabinet dimensions, the production team minimized the total number of physical connections, allowing for lightning-fast lock-together assembly and a perfectly flat, uniform display matrix under tight event countdown deadlines.
"Erecting a 1,000sqm screen outdoors was a massive logistical challenge, but the carbon fiber engineering of the VN-390T saved our schedule. The lightweight cabinets drastically lowered wind-load risks and truss stress, while the 7,680Hz refresh rate looked incredible on our live broadcast feed." — Operations Director, Rome Live Production Group.
For an outdoor rental display covering 1,000 square meters, traditional steel or iron framing would create an unsafe, unmanageable weight profile. The VN-390T chassis breaks this barrier by leveraging aerospace-grade **carbon fiber compound technology**, reducing individual cabinet weight to just 7.9kg. This lightweight profile significantly lowers the total deadload on the stage trussing, streamlining long-distance shipping logistics across the EU and protecting the on-site crew from physical strain.
Despite its slim 79mm profile, the carbon fiber matrix delivers exceptional structural strength and wind-resistance. The fast-locking alignment pins ensure that panels align perfectly with millimeter precision, preventing module lines and keeping the surface completely flat across the entire display canvas.
Operating under Rome's direct summer sunlight requires elite optical performance. The VN-390T outputs a calibrated **4,500 nits of high brightness** paired with a native 4,000:1 contrast ratio, ensuring vivid image legibility even at midday. Backed by a 14bit grayscale depth, the system renders smooth color gradients without banding, preserving pristine color accuracy across a wide 120° horizontal and 140° vertical viewing angle.
Engineered for premium broadcasting, the display features a **7,680Hz ultra-high refresh rate**. This completely eliminates scan lines, flickering, and rolling shutter artifacts under professional 4K camera lenses during live international broadcasts. With a fully ruggedized IP65 waterproof rating on both the front faceplate and rear enclosure, the screen operates reliably through unexpected rain, high humidity, and dust storms.
| Technical Parameter | VN-390T Mega-Staging Specifications |
|---|---|
| Total Surface Area | 1,000 Square Meters Continuous Modular Matrix |
| Pixel Configuration | P2.9mm Fine Pitch All-Weather Outdoor SMD |
| Chassis Material & Weight | Aerospace Carbon Fiber / 7.9kg Net Weight per Cabinet |
| Cabinet Dimensions | 500mm × 1000mm × 79mm Precision Housing |
| Optical Matrix Engine | 4,500 Nits Brightness / 4,000:1 Contrast / 14-Bit Grayscale |
| Refresh Rate Capability | 7,680Hz Fluid Broadcast Anti-Flicker Threshold |
| Ingress Protection Rating | IP65 Front Faceplate / IP65 Rear Chassis (Fully Weatherproof) |
In massive event rentals, technical delays are unacceptable. The VN-390T features a **100% full front and rear dual-maintenance layout**. Both the LED pixel modules and the enclosed independent central power box can be unlatched and hot-swapped from either side within 30 seconds, allowing technical crews to resolve issues without removing adjacent panels.
Powered by the **NovaStar A5S Plus** processing architecture, new modules instantly download factory-calibrated color maps upon installation to ensure seamless visual uniformity. To ensure maximum long-term peace of mind, VMX shipped this 1,000sqm deployment with a **5% comprehensive spare parts bundle** (modules, power units, and receiving cards) backed by our premium **3-Year Gold Global Warranty** framework.
Planning a large-scale stadium concert, international touring fleet, or high-end outdoor rental asset expansion? VMX Visual provides ultra-lightweight, high-brightness LED frameworks engineered for maximum operational ROI.
Q: What logistical benefits does carbon fiber provide for a massive 1,000sqm rental setup?
At just 7.9kg per cabinet, the carbon fiber framework cuts traditional cabinet weight by up to 35% compared to die-cast aluminum alternatives. This weight reduction drastically cuts shipping freight fees, simplifies high-altitude crane rigging, and minimizes the required steel ground support or structural engineering costs.
Q: How does VMX support after-sales maintenance for international touring fleets in Europe?
VMX includes a 5% comprehensive spare parts allotment (including pixel modules, central power boxes, and NovaStar cards) with the initial shipment. This batch-matched inventory allows rental operators to make immediate on-site replacements, fully backed by our 3-Year Gold Global Warranty framework for prompt component exchange.
Standards & Compliance
- International Electrotechnical Commission (IEC 60529) — Verification criteria for full IP65 dustproof and waterproof ingress standards.
- European Conformity (CE Mark) & RoHS Compliance — Certifying environmental material safety and electrical safety standards across all EU member states.
