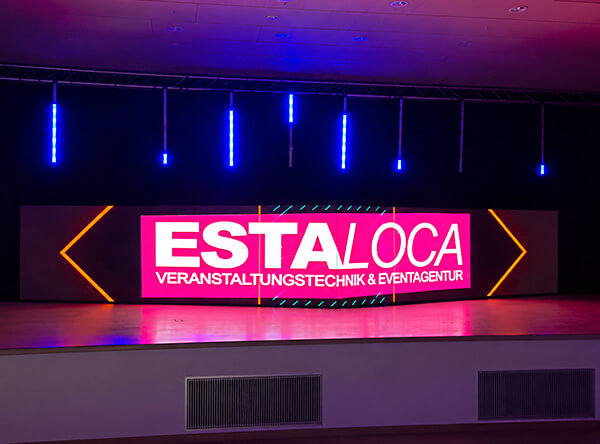

In January 2026, VMX Visual successfully deployed a high-end indoor stage rental solution in Frankfurt, Germany. Spanning a 16-meter wide continuous panorama, this 24-square-meter seamless digital backdrop utilizes our premium Venus-Lite Series (VN-Lite-291) with a fine P2.9mm pixel pitch. Engineered specifically for the rigorous demands of European event production, corporate touring, and live broadcasting, the project sets a new benchmark for structural precision and rapid setup deployment.
Frankfurt stands as the central hub for European exhibitions, high-profile corporate galas, and live entertainment events. For this indoor theatrical setup, the client required a ultra-wide cinematic layout measuring 16m in width by 1.5m in height. The main engineering challenge was achieving a perfectly flat, seamless horizon under strict venue setup windows, requiring a structural chassis that balances a lightweight profile with high durability.
The VMX VN-Lite-291 was chosen to meet these exact requirements. Featuring an ergonomic 500x1000x79mm cabinet form-factor, the 24sqm display provides a rich canvas tailored for high-resolution graphics, corporate branding videos, and scenic theatrical effects.
"The mechanical precision of the Venus-Lite series reshaped our staging pipeline. The tight interlock between cabinets eliminated visible gap lines completely, which is crucial when shooting corporate executives at close range." — Technical Director, Frankfurt Event Production Agency.
For rental operators, every kilogram matters during transport and high-altitude truss rigging. The VN-Lite-291 chassis is constructed from advanced die-cast aluminum alloy, keeping the unit weight down to just 7.5kg per cabinet. This structural optimization reduces total deadload strain on stage structures and minimizes physical fatigue for local staging crews during quick setup and teardown cycles.
With an ultra-slim depth of 79mm, these panels slide easily into standard flight cases, maximizing shipping volume and reducing transit costs across the EU. The mechanical integrity of die-cast aluminum ensures that even after hundreds of assembly cycles, the frame remains free from warping, maintaining consistent structural alignment across the screen surface.
Designed for indoor environments, the Venus-Lite features a balanced 900 nits of calibrated brightness paired with an ultra-high 5000:1 contrast ratio. This combination produces deep black levels and vibrant highlights without causing visual fatigue for close-up audiences. Powered by a premium 15-bit grayscale processing engine, the display processes over 32,768 color shades per channel, preventing color banding in dark gradients or subtle shadows.
To support high-end broadcasting and eliminate flickering under professional 4K TV cameras, the screen operates at a 7,680Hz refresh rate. This performance prevents scan lines and rolling shutters during live streams, making it an excellent choice for corporate stages and broadcast studios. Additionally, the wide 140° horizontal and vertical viewing angles ensure clear color accuracy and legibility for attendees seated at extreme sides of the auditorium.
| Technical Parameter | VN-Lite-291 Staging Specifications |
|---|---|
| Pixel Pitch Configuration | P2.9mm Fine Pitch Indoor Performance Matrix |
| Cabinet Physical Dimensions | 500mm × 1000mm × 79mm per Structural Unit |
| Chassis Metallurgy & Net Weight | Die-Cast Aluminum Precision Frame / 7.5kg Net Weight |
| Refresh Rate Capabilities | 7,680Hz Anti-Flicker Broadcast Level |
| Color Depth & Native Contrast | 15-Bit Grayscale Processing / 5,000:1 True Contrast Ratio |
| Ingress Protection Rating | IP40 Front Faceplate Shielding / IP21 Rear Shell Protection |
In high-pressure live staging scenarios, downtime is not an option. The VN-Lite-291 features a **100% full front and rear dual-maintenance design** for all core sub-assemblies. Both the individual LED pixel modules and the central enclosed power supply control box can be unlocked and serviced from either side of the display array.
This design allows on-site AV technicians to swap out a module or power unit in under 30 seconds without disrupting adjacent panels, providing excellent flexibility in space-constrained venues. Driven by the **NovaStar A5S Plus** processing framework, the system automatically imports factory-calibrated color profiles to newly installed modules, ensuring instant visual uniformity across the screen.
Looking to expand your event rental inventory with flexible, lightweight staging assets? VMX Visual provides durable, broadcast-grade configurations and factory-backed warranties for global touring operations.
Q: How does the dual-maintenance layout benefit tight venue timelines in the European rental market?
The ability to access components from both the front and rear allows crews to work simultaneously without getting in each other's way. If a display is mounted flat against an exhibition wall, it can be serviced entirely from the front, removing the need to build and pay for an accessible rear catwalk area.
Q: What protection and warranty guarantees are included with the VN-Lite-291 for international buyers?
The VN-Lite-291 features an IP40 rated front faceplate to protect against dust and light physical contact, and an IP21 rated rear shell tailored for indoor staging environments. Each system comes with a comprehensive 1-year factory-backed warranty, covering all core components including modules, internal electronics, and power units.
Standards & Compliance
- Federal Communications Commission (FCC Part 15) — Class A compliance verifying low electromagnetic radiation and interference in heavy staging environments.
- European Conformity (CE Marking) — Verified safety compliance across structural, electrical, and materials standards for EU deployment.
